Electric actuator 34-21 series

linearstepperlead screw

Overview

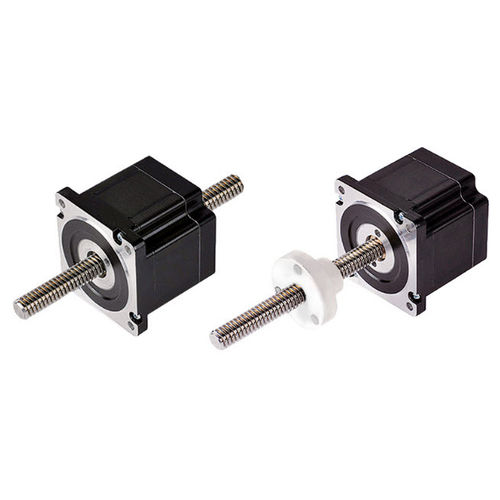

Size 34 [86mm] lead-screw stepper linear actuator is the largest size in the series and delivers up to 2270 N of continuous thrust. The product is available in two form factors: External and Non‑Captive.

Motor Characteristics
Motor | Voltage[V] | Current[A] [RMS] | Resistance[Ω] | Inductance[mH] | Weight[g] | Lead Wire No. | Motor Length[mm]
34-2113 | 12 | 1.3 | 9.2 | 71 | 2370 | 4 | 76
34-2130 | 5.7 | 3 | 1.9 | 15 | 2370 | 4 | 76
34-2155 | 2.85 | 5.5 | 0.52 | 4.5 | 2370 | 4 | 76

Note
Motor insulation class: B. Motor temperature rise: 80°C. Operating ambient temperature: -20℃ ~ 55℃.

Available Lead Screw and Travel per Step
Screw Dia.[inch] | Screw Dia.[mm] | Lead[inch] | Lead[mm] | Lead Code | Travel Per Step @ 1.8° [mm]
0.625 | 15.875 | 0.1 | 2.54 | K | 0.0127
0.625 | 15.875 | 0.125 | 3.175 | L | 0.0159
0.625 | 15.875 | 0.2 | 5.08 | R | 0.0254
0.625 | 15.875 | 0.25 | 6.35 | S | 0.0318
0.625 | 15.875 | 0.5 | 12.7 | Y | 0.0635
0.625 | 15.875 | 1 | 25.4 | Z | 0.127
* Value truncated
* Motor winding parameters and screw length can be customized according to customer requirements

Dimensional Drawings

• External: product image and external dimension drawing (images provided on page)
• Non‑Captive: product image and non‑captive dimension drawing (images provided on page)

Speed Thrust Curves
Single image provided showing speed‑thrust curves for Size 34 product.

Options

• Screw end machining: end‑of‑screw machining options available.
• Teflon coating: for grease‑free screw/nut combinations, a Teflon coated lead screw is available. Teflon coating can extend service life and improve thrust generation versus conventional SUS lead screws. Coating is available across the lead screw range and for all actuator types (External, Non‑Captive, Electric Cylinder, Kaptive). Anti‑backlash nuts can be combined with Teflon coated screws.
• Encoder option: resolutions (CPR) available: 64, 100, 200, 500, 1000, 1800, 2000, 2500, 3600, 4000, 5000, 7200, 8000, 10000. Single‑ended and differential output codes available per resolution.
• Power‑off brake (available for Size 34 motor): rated voltage DC 24V ±5%; resistance 69Ω ±10%; power 12W; hold torque > 6 N·m; insulation class B; insulation resistance >100 MΩ (DC500V); dielectric strength AC 1000V for 1 s; retraction time 50 ms; release time 50 ms; gyration gap 1°; emergency brake cycles 200; lifetime 500,000 cycles; noise level <60 dB.

Technical specifications

• Model series: Size 34 (nominal 86 mm)
• Product type: lead‑screw stepper linear actuator
• Form factors: External, Non‑Captive
• Continuous thrust: up to 2270 N
• Lead screw: 0.625 in (15.875 mm) diameter with lead options 0.1, 0.125, 0.2, 0.25, 0.5, 1 in (codes K, L, R, S, Y, Z)
• Travel per step (@1.8°): 0.0127 mm — 0.127 mm depending on lead
• Motor options (examples): 34‑2113 (12 V, 1.3 A RMS, R=9.2 Ω, L=71 mH, weight 2370 g, length 76 mm), 34‑2130 (5.7 V, 3 A, R=1.9 Ω, L=15 mH, weight 2370 g, length 76 mm), 34‑2155 (2.85 V, 5.5 A, R=0.52 Ω, L=4.5 mH, weight 2370 g, length 76 mm)
• Encoder resolutions available up to 10000 CPR
• Power‑off brake available (see options for specifications)
• Operating ambient temperature: -20℃ ~ 55℃
• Motor insulation class: B (temperature rise 80℃)
