Tilting table

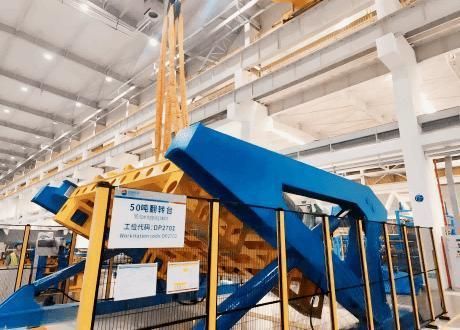

The 50-ton Hydraulic Iron Core Tilting Table system is a specialized piece of equipment designed for the assembly, turning, and vertical positioning of large two- and three-column transformer cores. The system includes an above-ground hydraulic turning platform (consisting of the turning table body, hydraulic system, electrical control system, and safety protection system), a stacking platform, a motorized lifting support rack, auxiliary support tooling, and other associated facilities. Maximum Loading Capacity: 50 tons Flippable Core Dimensions: 4300mm*3400mm Stacking Platform Dimensions: 3500 mm (W) × 4300 mm (L) × 1250 mm (H) Turning Angle: 0–90° Perpendicularity Accuracy: ±0.5° Platform Flatness: ≤3 mm (local deviation ≤2 mm/m) Platform Surface Roughness: ≤12.5 μm Turning Time (0° to 90°): ≤10 minutes (adjustable) Hydraulic Motor Power: ≤55 kW Hydraulic System Working Pressure: 18 MPa – 25 MPa Note: The above parameters are for reference only, all products can be customized. Efficient and Safe Hydraulic Tilting System Utilizes a hydraulic drive to perform stable and smooth core flipping without the need for an overhead crane. Equipped with hydraulic self-locking and self-check functions to ensure safe operation during the entire turning process. Robust and Durable Structural Design Main components are welded from high-strength structural steel and steel plates, providing excellent strength and rigidity to withstand the loads during core stacking and turning. Modular Integration for Coordinated Operation The turning table and stacking platform are linked with guiding rails, limiters, and jacking mechanisms for fast, precise alignment and secure locking, enabling efficient workflow. Adaptability to Multiple Working Modes Supports three operating modes: “Core Production,” “Core Maintenance,” and “Debugging,” to meet different operational needs. Debugging mode includes access control for enhanced safety. Complete Set of Auxiliary Fixtures Includes stacking platform (with longitudinal beams), core column support fixture, core column side support fixture, yoke iron support fixture, and safety fence—forming a comprehensive solution for transformer core turning operations. User-Friendly and Highly Automated Controlled via PLC programs and operated through a user-friendly control panel, enabling fast mode switching, synchronized movements, and reduced manual intervention.
