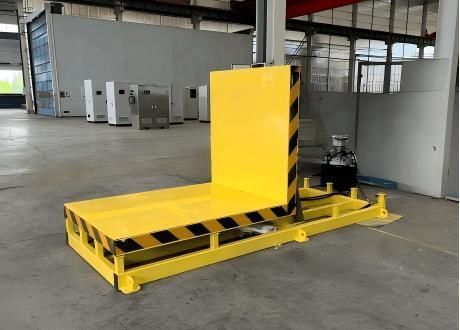

Hydraulic tipping station FZPT-1700

reellifting

The 90-degree L-shaped hydraulic upender is designed for heavy-duty roll handling applications, capable of safely flipping rolls weighing up to 1,700 kg. It features a 1600 × 1200 mm platform with a 20 cm wide, 1.6 m long, 160° groove to hold rolls securely. Installed in a pit, the platform is flush with the floor, ensuring low height, safety, and easy loading. The L-shaped structure and hydraulic drive provide stable, smooth, and reliable operation for heavy roll handling. Specification - Model: FZPT-1700 - Platform Dimensions: 1600mm*1200mm+1200*1200mm - Loading Capacity: 1,700KG - Tilting Angle: 90° - Tilting Speed: 60S - Tilting Method: Hydraulic Note: The above parameters are for reference only, all products can be customized Safety Features 1. Optimized Platform Design: Equipped with a 1600 × 1200 mm platform featuring a 20 cm wide, 1.6 m long, 160° concave groove, the machine provides stable positioning and secure support for rolls of various diameters. 2. Efficient 90° Rotation: The hydraulic system delivers smooth, controlled, and reversible 90-degree flipping, allowing rolls to be reoriented quickly and safely for storage, processing, or transport. 3. Low-Profile Installation: Designed for pit mounting, the platform remains flush with the floor, minimizing the overall equipment height, facilitating easy roll loading/unloading, and ensuring operator safety. 4. L-Shaped Structural Design: The robust L-shaped frame enhances stability, balance, and durability, reducing vibration and ensuring long service life even in heavy-duty applications. 5. Safe and Reliable Operation: Hydraulic drive with safety features provides steady motion control, preventing sudden impacts or roll slippage during flipping.
