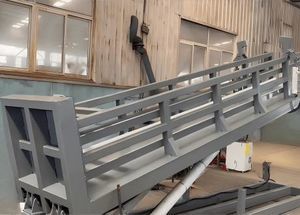

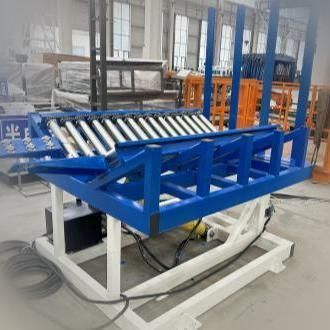

Hydraulic tilter FZPT-300

automatic90°industrial

The 90-Degree Upender has a load capacity of 300 kg and features two distinct work platforms. One side is equipped with a V-shaped powered roller conveyor, measuring 1500mm by 1200mm, suitable for supporting and transporting elongated materials. The other side is a comb-shaped platform, measuring 1200mm by 1100mm, allowing easy access for handling and operation. The flipping speed is less than 60 seconds per cycle, ensuring fast and safe material transfer during the handling process. Features: - Seamless Integration with Production Line: Easily connects to existing conveyor systems for continuous operation. - Designed for Cylindrical Products: Ideal for handling tube-shaped items, ensuring smooth and safe flipping. - Automatic Sensing: Equipped with a sensor switch to detect the presence of products, initiating the 90-degree flip automatically. - Efficient Flip Operation: Capable of flipping products within 60 seconds, improving productivity and reducing cycle time. - Dual Platform Design: Features a V-shaped powered roller conveyor for stable transport and a comb-shaped platform for easy material handling. - Precise Alignment: Ensures products are flipped and positioned upright accurately, ready for the next process. Specifications: - Model: FZPT-300 - Loading Capacity: 300kg - Platform Size: 1500*1200+1200*1100mm - Tilting Angle: 90° - Speed: Less than 60s/time - Actuation: Hydraulic - Application: Advanced Manufacturing
