Hydraulic metal lifting and turning device FZPT-15000

tiltingrotatingcleaning system

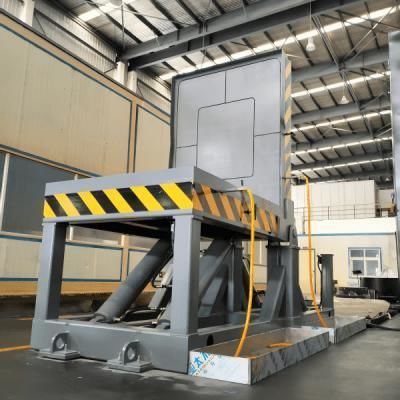

Our 15-ton hydraulic upender is built for efficient cleaning of large bearing housings and other heavy components. With a sturdy structure and smooth 90° tilting mechanism, it ensures safe, multi-angle access during cleaning. The dual-platform design (1500*2000mm + 1500*2000mm) accommodates oversized parts with ease. Side-mounted oil guide troughs and a removable collection pan help capture and recycle waste oil through filtration, promoting cleaner, more sustainable operations. Ideal for industrial cleaning workshops, maintenance facilities, and heavy equipment service areas. - Model: FZPT-15000 - Platform Dimensions: 1500*2000+1500*2000mm - Workpiece Size: 1500*1500*1300mm - Loading Capacity: 15,000KG - Tilting Angle: 90° - Tilting Speed: 60S - Tilting Method: Hydraulic - Additional Features: Oil guide trough + Oil collection pan - Control Mode: Jog control Note: The above parameters are for reference only, all products can be customized 1. Efficient Hydraulic Tilting – The 90° hydraulic tilting mechanism ensures safe and smooth movement, providing easy access for cleaning large bearing housings. 2. Heavy-Duty Capacity – Capable of handling workpieces up to 1500×1500×1300mm, making it ideal for large components in industrial applications. 3. Oil Recycling System – Equipped with integrated oil guide troughs and a detachable oil collection pan to capture and recycle waste oil through filtration, supporting eco-friendly practices. 4. User-Friendly Jog Control – The point-to-point jog control system offers precise and simple operation, allowing for easy tilting and positioning of materials. 5. Durable and Robust Construction – Built with a sturdy frame and high-quality hydraulic system, ensuring long-lasting performance in demanding industrial environments.
