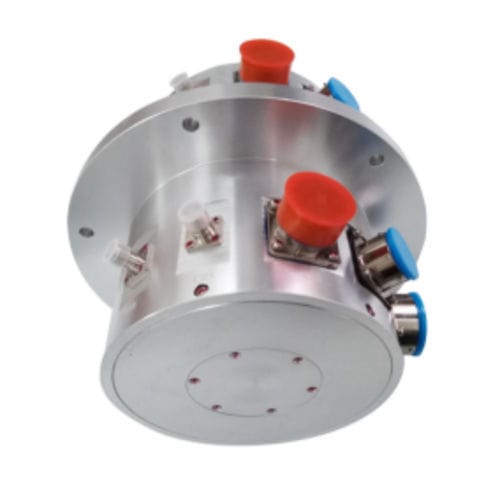

Slip ring for the aeronautical industry DHS160-41-2S

for medical equipmentfor HD video surveillancefor radar antennas

Short Description
The high-frequency rotary joint (RF slip ring) is designed for continuously rotating systems to transmit high-frequency and high-speed signals from the stationary part to the rotating part. It supports analog and high-speed digital signals across 500 MHz – 50 GHz. The unit features a compact design, stable performance, strong shielding and low interference. It is suitable for integration in varied industrial and communication applications. This series includes pure high-frequency slip rings and hybrid high-frequency electrical slip rings.

Features

• Frequency range: 500 MHz – 50 GHz
• Compact design with effective shielding and low electromagnetic interference
• Simultaneous transmission of multiple signals (analog and high-speed digital)
• Very low insertion loss and minimal transmission fluctuation
• Durable, maintenance-free construction

Applications

• Radar antennas and radar systems
• Military system equipment
• High-definition network video surveillance systems
• Satellite communication systems
• Medical imaging and diagnostic devices
• Air traffic control and missile defense systems

Technical specifications

• Model: DHS160-41-2S
• Number of circuits: 41
• Frequency range: 500 MHz – 50 GHz
• Operating temperature: -40°C ~ +65°C
• Rated current: customizable
• Operating humidity: <70%
• Rated voltage: 0 ~ 240 VAC/VDC
• Protection rating: IP54
• Insulation resistance: ≥1000 MΩ @ 500 VDC
• Insulation strength: 1500 VAC @ 50 Hz, 60 s, 2 mA
• Housing material: Aluminum alloy
• Electrical contact material: Precious metal
• Dynamic resistance variation: ≤10 mΩ
• Lead wire specification: Colored Teflon insulated, tinned stranded flexible wire
• Rotational speed: 0 ~ 600 rpm
• Lead wire length: 500 mm + 20 mm
