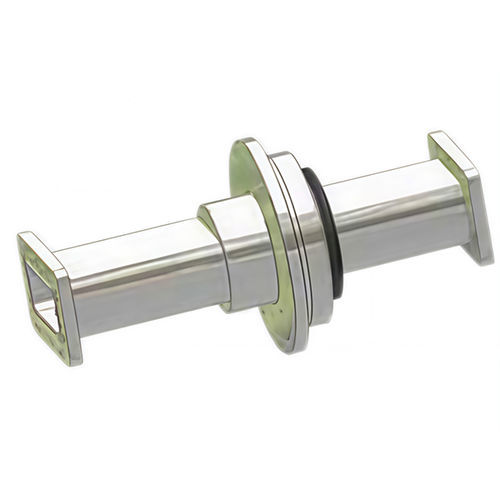

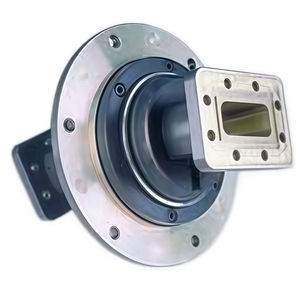

Telecommunication network slip ring HS-1RJ-005

industrialfor radar antennasalloy

Short Description
Single-channel WR284/G waveguide rotary joint optimized for 2.70–2.90 GHz. Delivers 1 MW peak and 1 kW average power, with VSWR ≤1.2 and insertion loss ≤0.2 dB. Maximum rotation speed 10 rpm, rated service life 6×10^6 cycles, protection rating IP65, operating temperature 0°C to +55°C. Intended for radar, satellite communications and industrial high-power RF systems.

Key features

• Core Frequency & Power Performance: Operates across 2.70–2.90 GHz (WR284/G). Handles 1 MW peak and 1 kW average power, VSWR ≤1.2 and insertion loss ≤0.2 dB to minimize signal degradation and ensure efficient power delivery.
• Mechanical Durability & Rotational Life: Designed for continuous operation up to 10 rpm with a service life of 6×10^6 cycles. Constructed from high-strength, corrosion-resistant alloy with precision bearings and seals to withstand vibration and repeated rotation.
• Environmental Protection & Operating Range: IP65 rated (dust-tight; protected against low-pressure water jets). Rated for 0°C to +55°C operation for reliable indoor/outdoor deployment in demanding environments.
• Engineering & Integration: WR284/G waveguide interface machined to industry tolerances for straightforward integration with standard components. Includes EMI shielding and clear mounting/alignment features to simplify installation.
• Quality Assurance & Compliance: Factory-tested for VSWR, insertion loss, power handling, rotational endurance and environmental resistance; conforms to applicable IEEE guidelines and undergoes rigorous QC testing.

Product Table
Channel Configuration : Single-channel : Simplifies integration for single-signal applications, reduces complexity and cost
Waveguide Standard : WR284/G : Compatible with standard WR284/G components, no custom adapters needed
Frequency Range : 2.70–2.90 GHz : Optimized for medium-to-high frequency applications (radar, satellite comms)
Peak Power : 1 MW : Handles high-intensity RF applications, suitable for high-power transmitters
Average Power : 1 kW : Supports continuous high-power operation without overheating or performance loss
VSWR : ≤1.2 : Minimizes signal reflection, ensures impedance matching and signal integrity
Insertion Loss : ≤0.2 dB : Reduces power waste, maximizes energy efficiency and signal quality
Max Rotational Speed : 10 rpm : Supports continuous rotation of antennas and machinery, ensures smooth performance
Service Life : 6×10^6 cycles : Long-term reliability, reduces maintenance and replacement costs
Protection Rating : IP65 : Dust-tight and water-resistant, suitable for harsh indoor/outdoor environments
Operating Temperature : 0°C–+55°C : Adapts to diverse climates, reliable in many field and industrial conditions
Mechanical Material : High-strength, corrosion-resistant alloy : Withstands rotational stress and environmental wear, extends service life
Compliance : IEEE Standards : Meets global industry requirements, ensures compatibility with global systems

Technical specifications

• Model: HS-1RJ-005
• Channel configuration: Single-channel
• Waveguide standard: WR284/G
• Frequency range: 2.70–2.90 GHz
• Peak power: 1 MW
• Average power: 1 kW
• VSWR: ≤1.2
• Insertion loss: ≤0.2 dB
• Maximum rotational speed: 10 rpm
• Service life: 6×10^6 cycles
• Protection rating: IP65
• Operating temperature: 0°C to +55°C
• Mechanical material: High-strength, corrosion-resistant alloy
• Compliance: IEEE standards
• Typical applications: Radar, satellite communications, industrial high-power RF systems
