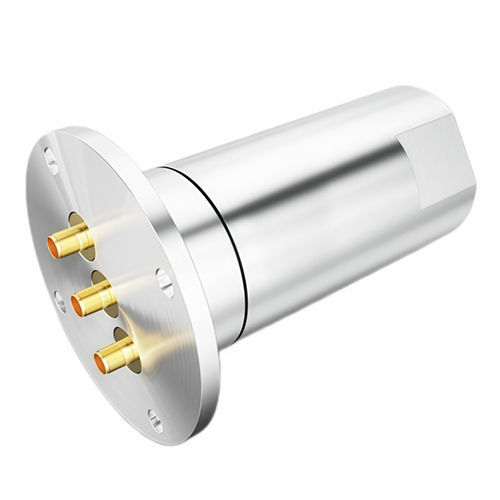

Telecommunication network slip ring

for radar antennasfor test benchesaluminum

Short Description
This is a custom medium-frequency slip ring platform (commercial name: Ingiant Medium Frequency Slip-Ring) providing three independent 50Ω RF channels for 1–5.25 GHz. Standard configuration uses SMA-F connectors, supports 10 W average power per channel, low insertion loss (≤1.2 dB), isolation ≥50 dB and phase stability from ±2° to ±4°. Rated operating range: -40°C to +70°C; IP51; minimum life 5 million revolutions at up to 30 RPM.

Product Overview
The slip ring maintains RF integrity (insertion loss, VSWR, isolation, phase) over continuous 360° rotation, preventing cable twisting and enabling reliable rotating RF interfaces for antenna pedestals, radar, test benches and other rotating microwave systems.

Complete Parameter Table

• Channels: 3 independent 50Ω channels (standard)
• Connector type (standard): SMA-F (50Ω)
• Frequency range (standard): 1 – 5.25 GHz
• Average power (per channel, max): 10 W CW
• VSWR (max): CH1 1.5; CH2/CH3 1.6
• VSWR variation (max): CH1 0.1 dB; CH2/CH3 0.2 dB
• Insertion loss (max): CH1 1.0 dB; CH2/CH3 1.2 dB
• Insertion loss variation (max): CH1 0.3 dB; CH2 0.15 dB; CH3 0.3 dB
• Isolation (min): ≥50 dB between channels
• Phase stability (max): ±2° to ±4° depending on channel

Mechanical & Environmental Parameters

• Maximum rotational speed: 30 RPM (standard)
• Operating life (min): 5,000,000 revolutions
• Maximum torque: 0.6 N·m @ room temperature
• Operating temperature: -40°C to +70°C
• Storage temperature: -50°C to +85°C
• Relative humidity (max): 95%
• IP rating: IP51 (higher IP by customization)
• Housing material: Aluminum alloy with conductive oxidation

Engineering Interpretation of Key Parameters

• Frequency range: Covers L‑band, S‑band and lower C‑band; platform can be engineered up to DC–18/26.5/40 GHz.
• Power rating: 10 W CW per channel in matched conditions; higher ratings available with thermal design adjustments.
• Impedance stability: Low VSWR and small variation through rotation indicate precision RF contact and mechanical tolerances.
• Amplitude stability: Low insertion loss and limited variation are critical for amplitude‑sensitive systems.
• Isolation: ≥50 dB reduces channel leakage and intermodulation in multi‑carrier setups.
• Phase stability: ±2°–±4° suitable for coherent systems (phased arrays, interferometry, SAR) requiring precision bearings and matched contact surfaces.

Typical Applications

• Ground‑based radar transmit/receive and calibration loops
• Satellite communication antenna pedestals with continuous tracking
• Electronic warfare test benches and rotating threat simulators
• Microwave medical devices with rotating heads
• Industrial microwave heating with continuous rotary feed
• Test and measurement turntables for antenna pattern characterization

Non-Standard Customization Capabilities

• Number of channels: 1 to 8+ (increased diameter as required)
• Frequency ranges: DC–18 GHz, DC–26.5 GHz, DC–40 GHz or custom bands
• Connector options: N, TNC, BNC, 2.92mm (K), 2.4mm, SMP, SSMA, etc.
• Power ratings: 50 W, 100 W, 200 W (with thermal design)
• Rotational speed: up to 300 RPM with precision bearings
• Environmental: IP65/IP67, salt fog, fungal resistance
• Materials & finishes: stainless steel, brass, copper alloys; nickel/silver/gold plating
• Mounting: custom bolt patterns, pilot diameters, anti-rotation features
• Phase tracking: matched phase vs. rotation across multiple units

Quality Assurance & Rigorous Testing

• 100% RF verification: VSWR, insertion loss and isolation measured across the range, static and dynamic.
• Phase stability logging over continuous rotation at rated RPM.
• Mechanical tests: torque across temperatures, runout, endurance sample testing to validate minimum revolutions.
• Environmental stress screening: thermal cycling, damp heat and vibration per applicable standards.

Technical specifications

• Brand: Ingiant
• Commercial name: Ingiant Medium Frequency Slip-Ring
• Frequency range: 1–5.25 GHz (standard)
• Channels: 3 independent 50Ω channels
• Connector type (standard): SMA-F (50Ω)
• Average power per channel: 10 W
• VSWR (max): CH1 1.5; CH2/CH3 1.6
• Insertion loss (max): CH1 1.0 dB; CH2/CH3 1.2 dB
• Isolation (min): 50 dB
• Phase stability: ±2° to ±4° depending on channel
• Maximum rotational speed: 30 RPM (higher speeds on request)
• Operating life (min): 5,000,000 revolutions
• Maximum torque: 0.6 N·m at room temperature
• Operating temperature: -40°C to +70°C
• Storage temperature: -50°C to +85°C
• Relative humidity (max): 95%
• IP rating: IP51 (customizable)
• Housing material: Aluminum alloy with conductive oxidation
