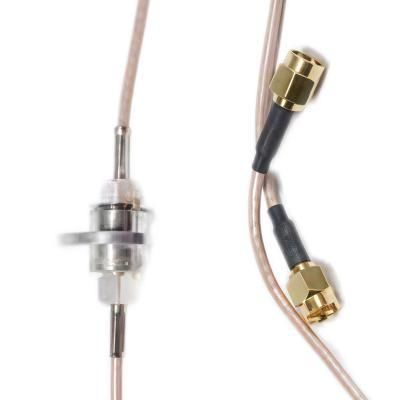

Telecommunication network slip ring HS-02RJ-005
for measurement instrumentsvideo surveillancefor radar antennas

Telecommunication network slip ring - HS-02RJ-005 - JiuJiang Ingiant Technology Co.,Ltd - for measurement instruments / video surveillance / for radar antennas
Telecommunication network slip ring - HS-02RJ-005 - JiuJiang Ingiant Technology Co.,Ltd - for measurement instruments / video surveillance / for radar antennas
Add to favorites
Compare this product
Go to the JiuJiang Ingiant Technology Co.,Ltd website for more information

Characteristics

Applications
for radar antennas, for measurement instruments, for telecommunication networks, video surveillance
Other characteristics
multi-channel, SMA, RF, with RF coaxial connector
Voltage

48 V

Primary current

0.5 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 60 rpm
(377 rad.min-1)

Number of channels

2 unit

Description

Short Description
  • HS-02RJ-005 2-channel SMA-M RF rotary joint
  • Operating frequency DC–3.0 GHz, 50 Ω nominal impedance, 18 W maximum average power
  • Maximum insertion loss ≤2.4 dB, maximum VSWR ≤1.35, maximum rotation speed 60 rpm, minimum lifespan 250,000 revolutions
  • Protection class IP51; operating temperature range −40°C to +85°C; DC carrying capacity 0.5 A / 48 VDC; suitable for high-frequency rotating systems


Product Detail
  • Designed for reliable transmission of RF signals in rotating assemblies and slip-ring integrations
  • Dual-channel SMA-M configuration providing DC–3.0 GHz bandwidth with standard 50 Ω interface
  • Low insertion loss and controlled VSWR combined with rated power handling and long mechanical life for continuous operation
  • Typical use cases include radar subsystems, communication antennas on rotating platforms, test and measurement equipment, and surveillance systems


Technical specifications
  • Model: HS-02RJ-005
  • Channels: 2
  • Connector type: SMA-M
  • Frequency range: DC - 3.0 GHz
  • Impedance: 50 Ω
  • Maximum average power: 18 W
  • Maximum insertion loss: ≤ 2.4 dB
  • Maximum VSWR: ≤ 1.35
  • Maximum rotation speed: 60 rpm
  • Minimum lifespan: 250,000 revolutions
  • Protection class: IP51
  • Operating temperature: -40°C ~ +85°C
  • DC carrying capacity: 0.5 A / 48 VDC
  • Typical applications: radar, communication systems, test equipment, surveillance systems
