Slip ring for the aeronautical industry HS-1RJ-006

marinefor radar antennasrugged

Short Description

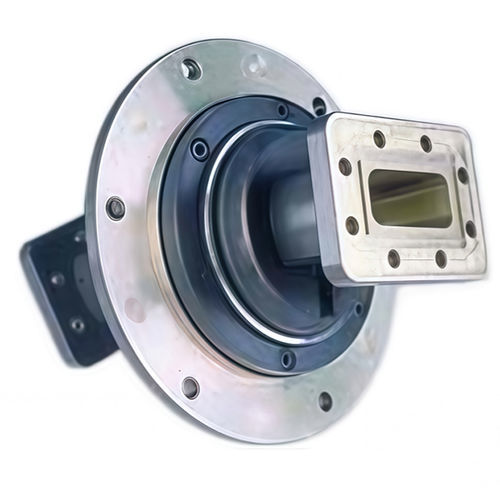

This single-channel WR187/G waveguide RF rotary joint operates across 5.4–5.9 GHz and is designed for continuous high-power RF transmission in rotating platforms typical of aerospace and radar applications. It supports 1.1 MW peak power and 4 kW average power while maintaining low VSWR and insertion loss, with mechanical life rated at 6×10⁶ revolutions and IP65 environmental protection.

Model
HS-1RJ-006

Features

• Precision RF performance for 5.4–5.9 GHz C-band: VSWR ≤1.2 and insertion loss ≤0.2 dB to limit reflections and preserve signal integrity.
• High power handling: 1.1 MW peak and 4 kW average for demanding RF transmit systems.
• Extended mechanical life: rated for 6×10⁶ revolutions with precision bearings and robust construction for continuous operation.
• Environmental protection: IP65 rating and operational temperature range 0 °C to +55 °C.
• Mechanical specifications: single-channel WR187/G waveguide design; maximum rotation speed 10 RPM.

Technical Specifications (table)
Parameter — Specification
Frequency Range — 5.4–5.9 GHz
Waveguide Size — WR187/G
Channels — Single
Peak Power — 1.1 MW
Average Power — 4 kW
VSWR — ≤1.2
Insertion Loss — ≤0.2 dB
Max Rotation Speed — 10 RPM
Lifespan — 6×10⁶ revolutions
Protection — IP65
Operating Temperature — 0 °C to +55 °C

Applications

• Radar systems (airborne, ground-based, marine)
• Satellite communication antennas
• High-power industrial RF equipment
• Rotating communication platforms
• Military and aerospace RF systems

Key Buyer Benefits

• Minimizes signal loss and distortion in rotating RF links
• Delivers reliable performance in high-power transmission scenarios
• Reduces maintenance frequency through extended service life
• Ensures stable operation in dusty and wet environments (IP65)
• Facilitates integration into existing WR187 waveguide systems

Technical Specifications

• Frequency Range: 5.4–5.9 GHz
• Waveguide Size: WR187/G
• Channels: Single
• Peak Power: 1.1 MW
• Average Power: 4 kW
• VSWR: ≤1.2
• Insertion Loss: ≤0.2 dB
• Max Rotation Speed: 10 RPM
• Lifespan: 6×10⁶ revolutions
• Protection: IP65
• Operating Temperature: 0 °C to +55 °C
