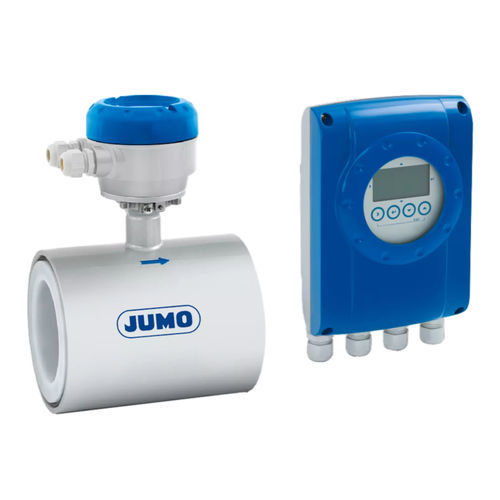

Magnetic-inductive flow meter OPTIFLUX 1000

volumefor liquidsDN150 - 6"

Overview
The electromagnetic flowmeter OPTIFLUX 1000 can be used to measure conductive liquids in pipes with nominal widths from DN 10 to DN 150. The device has been designed for standard industrial applications and can be used in liquid media with different properties.

Highlights

• Space-saving installation
• Wear and maintenance free
• Wide dynamic measuring range

Technical data (summary)
Measuring principle: Magnetic-inductive
Nominal widths: DN 10 to DN 150
Accuracy: 0.5 % of the measured value
Medium temperature: Up to 120 °C
Operating pressure: Up to 16 bar
Process connection: Flange connection
Counter flange: PN 40 (DN 10 to DN 80), PN 16 (DN 100 to DN 150)
Lining: PFA
Ambient temperature: Up to 65 °C
Protection type: IP66/IP67
Outputs: Analog output (4 to 20 mA) with HART and pulse/frequency/status
Display: LCD display, white backlight for displaying up to 3 measured values

Characteristics / technical specifications

• Measuring principle: Magnetic-inductive for conductive liquids
• Nominal widths supported: DN 10–DN 150
• Typical accuracy: 0.5 % of the measured value
• Fluid temperature range up to 120 °C
• Operating pressure up to 16 bar
• Process connection configured with flange and counter flanges PN 40 / PN 16 depending on DN
• Internal lining: PFA
• Ambient operating temperature up to 65 °C
• Protection rating: IP66/IP67
• Outputs: 4–20 mA with HART and pulse/frequency/status signals
• Display: White backlit LCD showing up to 3 measured values
