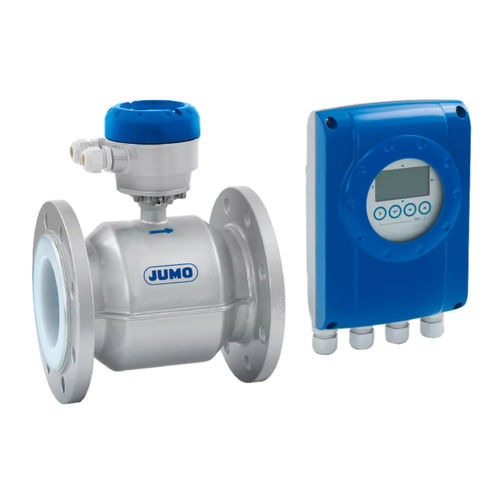

Electromagnetic flow meter OPTIFLUX 2000volumefor waterfor wastewater
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic
- Type
- volume
- Fluid
- for water, for wastewater
- Pipe diameter
- DN25 - 1", DN300 - 12"
- Material
- polypropylene
- Communication
- 4-20 mA, with pulse output, digital output, HART
- Protection level
- IP67, IP68, IP66
- Applications
- for water treatment, for wastewater treatment
- Other characteristics
- compact, high-accuracy, with display, with LCD display, electronic
- Process temperature
Min.: -5 °C
(23 °F)Max.: 90 °C
(194 °F)- Process pressure
Min.: 10 bar
(145.04 psi)Max.: 40 bar
(580.15 psi)- Precision
0.5 %
Description
Product overview
The OPTIFLUX 2000 is an electromagnetic flowmeter for water and wastewater applications. It is available with PP or hard-rubber linings and holds multiple drinking-water approvals for PP-lined versions.
Highlights
Technical data
Measuring principle: Magnetic-inductive
Nominal widths: DN 25 to DN 300
Accuracy: 0.5 % of measured value
Medium temperature: Up to 90 °C
Process connection: PN 40 (DN 25–DN 80), PN 16 (DN 100–DN 150), PN 10 (DN 200–DN 300)
Lining: PP, hard rubber
Ambient temperature: Up to 65 °C
Protection type: IP66/IP67 (IP68 for remote version)
Outputs: Analog (4–20 mA) with HART; pulse / frequency / status outputs
Display: LCD with white backlight, up to 3 measured values
Drinking-water approvals (PP lining): ACS, DVGW, KTW, WRAS, NSF, KIWA
Characteristics / technical specifications
The OPTIFLUX 2000 is an electromagnetic flowmeter for water and wastewater applications. It is available with PP or hard-rubber linings and holds multiple drinking-water approvals for PP-lined versions.
Highlights
- Suitable for potable water applications (PP lining approvals)
- Wear-free measuring principle (magnetic-inductive)
- Wide dynamic measuring range and compact design
Technical data
Measuring principle: Magnetic-inductive
Nominal widths: DN 25 to DN 300
Accuracy: 0.5 % of measured value
Medium temperature: Up to 90 °C
Process connection: PN 40 (DN 25–DN 80), PN 16 (DN 100–DN 150), PN 10 (DN 200–DN 300)
Lining: PP, hard rubber
Ambient temperature: Up to 65 °C
Protection type: IP66/IP67 (IP68 for remote version)
Outputs: Analog (4–20 mA) with HART; pulse / frequency / status outputs
Display: LCD with white backlight, up to 3 measured values
Drinking-water approvals (PP lining): ACS, DVGW, KTW, WRAS, NSF, KIWA
Characteristics / technical specifications
- Measuring principle: Magnetic-inductive
- Nominal widths: DN 25 to DN 300
- Accuracy: 0.5 % of measured value
- Medium temperature: Up to 90 °C
- Process connection: PN 40 (DN 25–DN 80), PN 16 (DN 100–DN 150), PN 10 (DN 200–DN 300)
- Lining: PP, hard rubber
- Ambient temperature: Up to 65 °C
- Protection type: IP66/IP67; IP68 for remote version
- Outputs: Analog 4–20 mA with HART; pulse / frequency / status
- Display: LCD with white backlight, up to 3 measured values
- Drinking-water approvals (PP): ACS, DVGW, KTW, WRAS, NSF, KIWA
