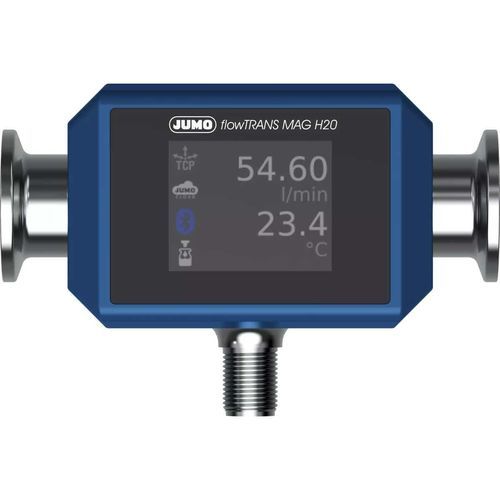

Electromagnetic flowmeter flowTRANS MAG H20volumefor liquidsDN25 - 1"
Add to favorites
Compare this product
Characteristics
- Technology
- electromagnetic
- Type
- volume
- Fluid
- for liquids
- Pipe diameter
- DN25 - 1"
- Installation
- threaded
- Communication
- Modbus TCP, IO-Link
- Protection level
- IP65, IP67, IP69
- Applications
- industrial, for the food industry, for the beverage industry, for dosing
- Other characteristics
- compact, precision
- Volumetric flow rate
Min.: 0.005 l/min
(0.0013 us gal/min)Max.: 150 l/min
(39.6258 us gal/min)- Precision
0.5 %
Description
Overview
The JUMO flowTRANS MAG H20 is an electromagnetic flowmeter for industrial automation. Its compact insertion design enables installation in small plants such as dosing systems and apparatus cooling. It measures conductive media with precision. TRI‑Clamp variants support process-oriented use in hygienic applications; G-type external threads are also available.
Highlights
Technical data
Flow rates: 0.005 to 150 L/min
Medium temperature: Up to 90 °C
Insertion length: 110 mm (except TRI‑Clamp DN 25)
Inlet and outlet section: ≥ 0 DN / ≥ 0 DN
Inputs and outputs: SPE with PoDL (Modbus TCP, JUMO Cloud connector), IO-Link (including analog/digital I/O)
Protection rating: IP65 / IP67 / IP69
Applications / Remarks
Product information
Short description: Electromagnetic flowmeter
SKU: 406065
Availability: In Stock
State: NEW
The JUMO flowTRANS MAG H20 is an electromagnetic flowmeter for industrial automation. Its compact insertion design enables installation in small plants such as dosing systems and apparatus cooling. It measures conductive media with precision. TRI‑Clamp variants support process-oriented use in hygienic applications; G-type external threads are also available.
Highlights
- Measurement range suitable for very low to moderate flows
- Compact insertion sensor for space-constrained installations
- Modern HMI and communication options
Technical data
Flow rates: 0.005 to 150 L/min
Medium temperature: Up to 90 °C
Insertion length: 110 mm (except TRI‑Clamp DN 25)
Inlet and outlet section: ≥ 0 DN / ≥ 0 DN
Inputs and outputs: SPE with PoDL (Modbus TCP, JUMO Cloud connector), IO-Link (including analog/digital I/O)
Protection rating: IP65 / IP67 / IP69
Applications / Remarks
- Ideal for dosing systems and apparatus cooling
- Hygienic process installations via TRI‑Clamp variants
- Also available with standard G-type external threads for general industrial use
Product information
Short description: Electromagnetic flowmeter
SKU: 406065
Availability: In Stock
State: NEW
