Process indicator meroVIEW

digitalLCD display5-digit

Description
The JUMO meroVIEW is a multifunction digital indicator with integrated PLC capability, designed for flexible process monitoring and control. User interface and hardware can be customised with optional input/output and communication modules to display and process the required variables.

Short description
Multifunction digital indicator with PLC function (JUMO meroVIEW).

Availability
In Stock

Voltage supply (Variants)

• AC 110 to 240 V +10/-15 %, 48 to 63 Hz
• AC/DC 24 V +10/-15 %, 48 to 63 Hz

Highlights

• High interface connectivity for field and network integration
• Intuitive configuration and operation via plain text display
• Fast and simple commissioning with modular option cards

Technical data (summary)

• Inputs: Analog input, digital input; optional additional analog, digital and counting inputs (12.5 kHz)
• Outputs: 2 relays (normally open contact) standard; optional analog outputs, relays (NO/CO), solid state relays, logic outputs (0/14 V or 0/24 V) and open collector outputs

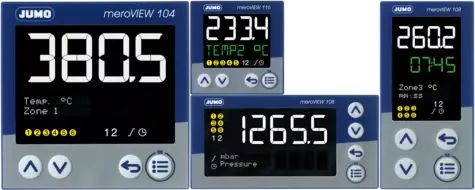

• Formats: 116 (48 × 48 mm), 108H (48 × 96 mm), 108Q (96 × 48 mm), 104 (96 × 96 mm)
• Interfaces: USB host, USB device (setup); optional RS485 (Modbus RTU master/slave), Ethernet (Modbus TCP master/slave), PROFINET device
• Display: Two LCD displays with 18 segments each; plain text display for menus, parameters and process information (text display not available with JUMO meroVIEW 116)
• Connections: Removable terminal strips with PUSH IN
• Special features: Modular design with option cards; math and logic functions; ST-code capable for control functions; fast hardware counters (12.5 kHz); min/max memory, hold and taring; logic outputs can supply two-wire transmitters; startup delay and reset functions

Customer benefits at a glance

• Multiple formats allow optimal adaptation to panel cut-outs and applications
• High flexibility in applications due to extensive input options
• Broad output options enable diverse control and signalling tasks
• Easy integration into higher-level and subordinate systems via standard protocols
• Reduced commissioning and operation time thanks to a customisable device menu

Technical specifications

• Model: JUMO meroVIEW
• Input types: Analog, digital; optional counting inputs (12.5 kHz)
• Standard outputs: 2× relays (normally open)
• Optional outputs: Analog outputs, additional relays (NO/CO), solid state relays, logic outputs (0/14 V or 0/24 V), open collector
• Panel sizes: 48×48 mm (116), 48×96 mm (108H), 96×48 mm (108Q), 96×96 mm (104)
• Communication: USB (host/device); optional RS485 (Modbus RTU), Ethernet (Modbus TCP), PROFINET
• Display: 2× LCD with 18 segments, plain text menu/parameter display
• Connections: Removable PUSH IN terminal strips
• Functions: Modular options, math/logic functions, ST-code control capability, min/max memory, hold/tare/reset functions
