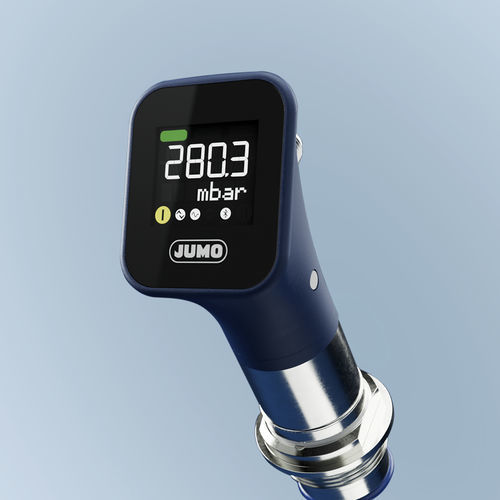

Relative pressure transmitter DELOS S02

absoluteIO-LinkEthernet

Overview
The JUMO DELOS S02 is an intelligent pressure transmitter with integrated display designed to measure relative and absolute pressures in liquid and gaseous media. Measuring ranges: 0.1 to 100 bar (relative) and 0.4 to 60 bar (absolute). The device features a rotatable housing and display and supports Single Pair Ethernet (SPE) and IO-Link for real-time data transmission. Configuration is available via Bluetooth using the JUMO smartCONNECT app.

Highlights

• Rotatable housing and display for optimal readability
• Digital interfaces: Single Pair Ethernet (SPE) with PoDL and IO-Link
• Multiple output options including PNP switching and optional analog outputs

Customer benefits at a glance

• Reduced cabling effort with digital interfaces (IO-Link / SPE)
• Quick and flexible configuration via Bluetooth or IO-Link using JUMO smartCONNECT
• Local display provides measured values, diagnostics and connection status for faster commissioning and troubleshooting

Technical data (summary)

• Measuring ranges: 0.1–100 bar (relative); 0.4–60 bar (absolute)
• Outputs: 2× PNP switching OR 1× PNP switching + 1× analog output (optional: 4–20 mA, 0–10 V)
• Digital interfaces: Single Pair Ethernet (SPE) with PoDL (Modbus TCP slave); IO-Link
• Display: Shows measured value, diagnostic information and connection status; rotatable for any installation position
• Configuration: Bluetooth via JUMO smartCONNECT app and IO-Link

Description details
The JUMO DELOS S02 combines high accuracy and long-term stability for demanding industrial applications such as food & beverage, water & wastewater, HVAC, machine building and laboratories. SPE and IO-Link enable real-time monitoring and simplified wiring; PoDL supplies power over the SPE connection where applicable. Multiple electrical outputs allow direct integration into control systems and PLCs. The device supports direct cloud connectivity and provides diagnostic data to support predictive maintenance and process optimization.

Technical specifications

• Accuracy: precision sensor element designed for low drift and long-term stability
• Operation: local display plus wireless configuration via Bluetooth or IO-Link
• Integration: real-time data via SPE/IO-Link, optional analog for legacy systems
