Process indicator miroVIEW

temperaturedigitalpanel-mount

Overview

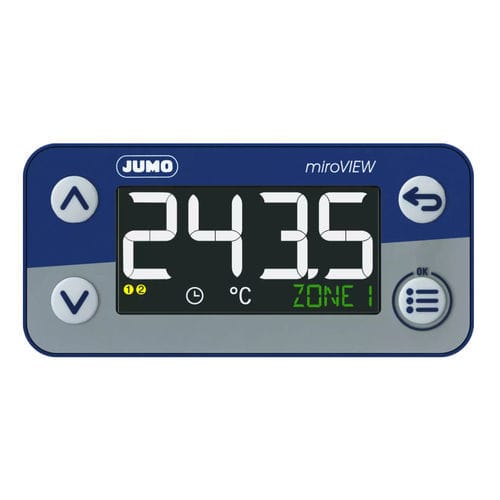

The JUMO miroVIEW is a panel-mounted digital indicator with measurement inputs for RTD sensors, thermocouples or standard signals and a limit-value monitoring function suited for industrial process and machine control.

Highlights

• Flexible input options: RTD, thermocouple or standard signals
• Plain-text intuitive operation and quick commissioning
• PUSH IN connection technology for fast wiring

General technical data
Measurement inputs: RTD temperature sensors, thermocouples or standard signals
Outputs: Up to 2 relays
Supply voltage: AC 230 V (+10/-15 %, 48–63 Hz); AC 115 V (+10/-15 %, 48–63 Hz); DC 12–24 V (+15/-15 %)
Housing dimensions: 76 × 36 × 62 mm
Approvals: cULus

Special features

• Limit-value monitoring function for alarms and control
• Integrated timer and service/operating hours counters
• Cost-effective solution for individual display and monitoring tasks

Typical applications

• Machine building and automation control panels
• Process monitoring in HVAC, ovens and industrial plants
• OEM control panels and retrofit displays
