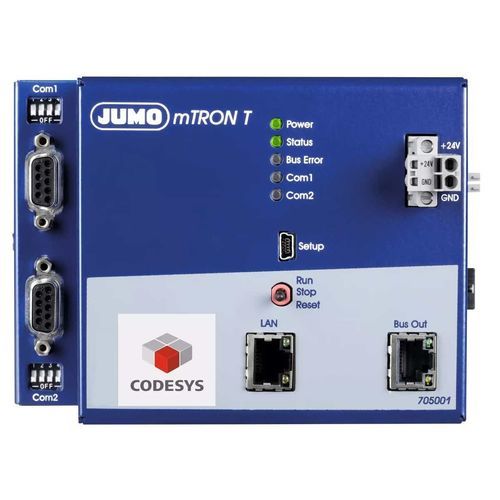

Modular process controller mTRON T

multiple-outputprogrammablerugged

Overview
The central processing unit contains the process map of the application and manages the configuration and parameter data of the overall system. Nine program generators and extensive limit value monitoring functions are available for individual control tasks.

Highlights

• Process mapping for 30 input and output modules
• Software for fast startup
• Access to process values via integrated web server

Key features

• 9 program generators
• Extensive limit value monitoring (64 limit value monitoring functions)
• PLC according to IEC 61131-3 (CODESYS V3.5)
• OPC server (OPC-DA, in connection with PLC CODESYS V3.5)
• Math and logic module
• Plug and Play when replacing input and output modules
• Battery-buffered RAM and real-time clock
• Supply of operating voltage and fast wiring of operating voltage and system bus by simply plugging together the modules

Technical data — General technical data
Interfaces: USB device; Ethernet with integrated web server; RJ45 system bus (Bus Out); 2 fieldbuses (optional). Special features: Process mapping for up to 30 input and output modules; integrated web server; 64 limit value monitoring functions; PLC according to IEC 61131-3 (CODESYS V3.5); OPC server (OPC-DA, in connection with PLC CODESYS V3.5); 9 program generators; math and logic module; Plug and Play when replacing the input and output modules; battery-buffered RAM; real-time clock; supply of operating voltage; fast wiring of operating voltage and system bus by simply plugging together the modules. Housing: Robust metal case for DIN-rail mounting in the control cabinet. Approvals: UL, DNV GL. Ambient temperature: -20 to +55 °C. Dimensions (W × H × D): 135 mm × 101 mm × 67.1 mm (without connection elements). Protection type: IP20, according to DIN EN 60529. Current consumption: Max. 350 mA (at DC 19.2 V) current consumption of modules installed in rows.

Technical specifications

• Interfaces: USB device; Ethernet with integrated web server; RJ45 system bus (Bus Out); 2 fieldbuses (optional)
• Process mapping: Up to 30 input and output modules
• Limit value monitoring: 64 functions
• PLC: IEC 61131-3 (CODESYS V3.5)
• OPC server: OPC-DA (in connection with PLC CODESYS V3.5)
• Program generators: 9
• Memory: Battery-buffered RAM; real-time clock
• Housing: Robust metal case for DIN-rail mounting
• Approvals: UL, DNV GL
• Operating temperature: -20 to +55 °C
• Dimensions: 135 mm × 101 mm × 67.1 mm (without connection elements)
• Protection class: IP20 (DIN EN 60529)
• Max. current consumption: 350 mA (at DC 19.2 V)
