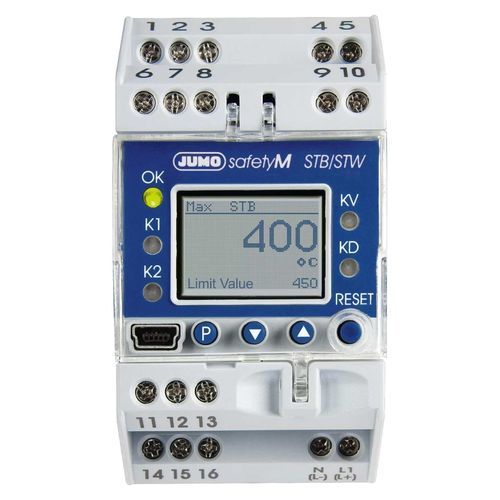

Temperature limiter with LCD display 701150

processfor process monitoringsafety

Overview
The device is primarily built to monitor thermotechnical processes accurately and switch the systems to a safe operating status in the event of malfunctions. As a result, risks to people, the environment, production facilities, and production goods can be identified and averted at an early stage.

Highlights

• Internal and external unlocking
• LCD display
• Wide voltage supply range

General technical data (table)
Linearization: 12 linearizations can be set
Pt100 DIN IEC 60751:2008: -200 to +850 °C
Pt1000 DIN IEC 60751:2008: -200 to +850 °C
Error tolerance time: ≤ 5 s time taken into account for all diagnostic tests
Input filter: Digital filter, 2nd order, filter constant can be set from 0 to 100 s

Technical specifications

• Product name: JUMO safetyM STB/STW
• Commercial designation: Safety temperature limiter, safety temperature monitor according to DIN EN 14597
• Manufacturer / Brand: JUMO
• SKU / Internal code: 701150
• Standards: DIN EN 14597
• Primary function: Monitor thermotechnical processes and switch systems to a safe operating status in the event of malfunctions
• Unlocking: Internal and external unlocking
• Display: LCD display
• Voltage: Wide voltage supply range
• Sensor types and ranges: Pt100 (DIN IEC 60751:2008) -200 to +850 °C; Pt1000 (DIN IEC 60751:2008) -200 to +850 °C
• Linearization: 12 linearizations can be set
• Error tolerance time: ≤ 5 s (applies to all diagnostic tests)
• Input filter: Digital filter, 2nd order; filter constant adjustable from 0 to 100 s
