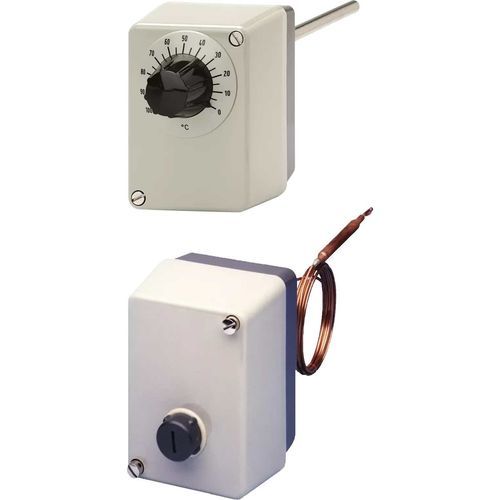

SPDT thermostat ATH series

surface-mount230VACIP54

Overview
The ATH series is offered as temperature controllers (TR), temperature limiters (TB), temperature monitors (TW), safety temperature monitors (STW) and safety temperature limiters (STB). In case of a malfunction the STB brings the monitored system to a safe operating state.

Highlights

• Self-monitoring in the event of a pressure drop
• Safety switch-off at -20 °C
• Robust housing

General technical data
Versions: Temperature controller (TR), temperature limiter (TB), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)
Switching capacity: 10 A, 230 V
Switching elements: Single-pole snap-action switch
Maximum control range / limit value: 500 °C
Protection type: IP54; IP65 (type 603035)
Areas of application: Heating industry, air-conditioning industry, general mechanical engineering
Approvals: DIN, (PED, EAC; type 603021, 603026)
Features: Single thermostat

Technical specifications

• Versions: TR, TB, TW, STW, STB
• Switching capacity: 10 A, 230 V
• Switching elements: Single-pole snap-action switch
• Maximum control range / limit value: 500 °C
• Protection type: IP54; IP65 (type 603035)
• Areas of application: Heating industry, air-conditioning industry, general mechanical engineering
• Approvals: DIN, (PED, EAC; type 603021, 603026)
• Features: Single thermostat
