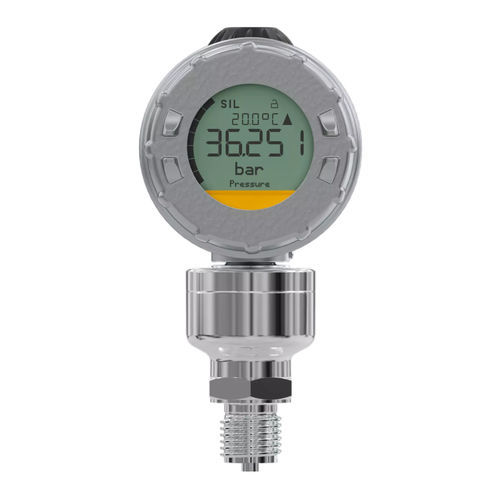

HART pressure transmitter SIRAS P21 AR

4-20 mAthreadedfor liquids

Overview
The JUMO SIRAS P21 AR pressure transmitter reliably measures relative and absolute pressure of liquids, steam and gases. Developed for safety-related plants in accordance with DIN EN 61508, it is suitable for integration in safety measuring chains in the process industry and mechanical engineering.

Highlights

• Safety Integrity Level: SIL 2 / SIL 3; Performance Level: PL c / PL d
• Long-term stability: < 0.1 % per year
• Linearity: 0.05 %
• Outputs: 4–20 mA two-wire; HART® (up to 4 configurable measured values)

Technical data (excerpt)

• Measuring range: Up to 100 bar
• Linearity: 0.05 %
• Long-term stability: < 0.1 % per year
• Outputs: 4–20 mA, two-wire; HART® (4 configurable measured values)
• Process connection: Thread
• Wetted materials: Stainless steel (316L)
• Approvals: SIL 2 / SIL 3 (DIN EN 61508), DIN EN 13849 (PL), PED 2014/68/EU (in combination with JUMO safetyM STB/STW and transmitter power supply unit)

Specifications

• Programmable transmitter parameters
• Sensor and housing in stainless steel
• Designed for use within safety measuring chains
• Comprehensive diagnostic and error detection functions
