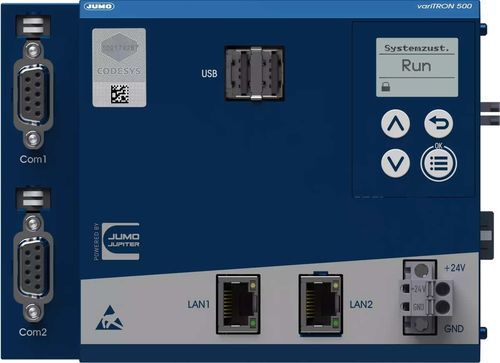

Quad-core CPU board variTRON 500

EthernetRS-232EtherCAT

Product description
JUMO variTRON 500 is based on the modular JUMO JUPITER platform. The central processing unit, combined with the proven input and output modules (including the controller module) of the JUMO mTRON T measuring, control and automation system, forms a complete system and provides PLC functionality (CODESYS V3.5).

Highlights

• Integration of software functions (PLC)
• High scalability for system extensions
• Process mapping for all connected modules

Technical data (excerpt from table)
Interfaces: 2 USB host, 1 Ethernet, system bus; optional: 1 additional Ethernet, 2 PROFINET, 2 RS232/RS485
Operation: 4 keys and monochrome LCD display, 96 × 64 pixels (8 lines)
Options: PLC according to IEC 61131-3 (CODESYS V3.5), OPC UA server (with PLC), 9 program generators (with PLC, from system version xx)
Hardware: JUMO JUPITER platform with 800 MHz quad-core processor; battery-buffered RAM
Modules: more than 30 intelligent connection modules; panels in portrait or landscape; formats 4:3 or 16:9
Control loops: more than 120
Connection possibilities: JUMO digiLine sensors for liquid analysis; thyristor power controller via EtherCAT
Special features: high processing speed; flexible operating concept; multiple software and hardware configuration levels; modern communication interfaces (OPC UA, MQTT); easy I/O adaptation; expandable software functions via CODESYS PLC; multi-system support; integrated JUMO web diagnosis; function and visualization libraries; optional recorder app for process data acquisition and analysis

Technical specifications

• Interfaces: 2 USB host, 1 Ethernet, system bus; optional: 1 Ethernet, 2 PROFINET, 2 RS232/RS485
• Operation: 4 keys and monochrome LCD display, 96 × 64 pixels (8 lines)
• Options: PLC according to IEC 61131-3 (CODESYS V3.5); OPC UA server (with PLC); 9 program generators (with PLC, from system version xx)
• Hardware: JUMO JUPITER platform with 800 MHz quad-core processor; battery-buffered RAM
• Modules: >30 intelligent connection modules; panels in portrait/landscape; formats 4:3 or 16:9
• Control loops: more than 120
• Connection possibilities: JUMO digiLine sensors for liquid analysis; thyristor power controller via EtherCAT
• Special features: high processing speed; flexible operating concept; modern communication (OPC UA, MQTT); easy I/O adaptation; CODESYS PLC extensibility; multi-system support; integrated web diagnosis; function and visualization libraries; optional recorder app for process data acquisition and evaluation
