Modbus process controller JUMO DICON touch

programmablemodularmulti-channel

Overview
DICON touch is a modular process and program controller for industrial applications. It provides configurable control channels, program control and plant visualisation via configurable process screens. The modular hardware and optional recording functions allow adaptation to specific plant and regulatory requirements.

Highlights

• Available in 2- or 4-channel configurations
• Modular hardware with plug-in I/O cards

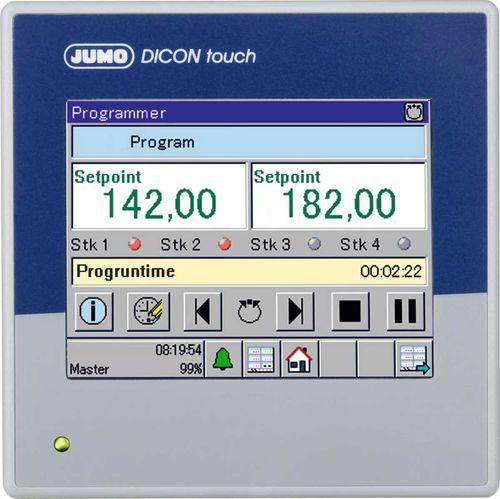

• 3.5" TFT colour touchscreen for operator interaction
• Optional integrated paperless recorder and recording/evaluation software
• Password-protected user management and programmable user levels

Technical data

• Measuring inputs: Up to 4 user-configurable analog inputs (RTD, resistance transmitters, thermocouples, 0(4)–20 mA, 0(2)–10 V); custom linearization possible
• Digital inputs: 7 potential-free digital inputs
• Outputs: Up to 12 internal outputs (relays: changeover/NO, logic outputs 0/12 V or 0/24 V, semiconductor 1 A, analog 0/4–20 mA or 0/2–10 V); expandable with 2 external modular assemblies; 24 V transmitter supply
• Display: 3.5" TFT colour touchscreen (320 × 420 px, 256 colours); multilingual plain-text display; configurable process screens and bar graph
• Interfaces/protocols: RS485 (Modbus), Ethernet, PROFIBUS DP, PROFINET, RS422/485 (Modbus), USB host, USB device
• Controller types: Two-state, three-state, modulating, continuous, continuous with integrated position controller; control structures P, I, PD, PI, PID (4 parameter sets per channel)
• Alarms: 16 limit-value monitoring functions; 8 selectable alarm functions with timer and acknowledgement
• Control channels: 2 independent, user-configurable control channels (device versions available for different channel counts)
• Program controller: 10 programs × 50 segments; 8 control tracks
• Mounting / Format: Panel mounting; metal/plastic housing; 96 × 96 × 131 mm
• Supply voltage: AC/DC 20–30 V (48–63 Hz) or AC 110–240 V +10/−15 % (48–63 Hz)
• Protection: Front IP66; rear IP20

Specifications & special features

• Modular plug-in cards for individual retrofitting
• Intuitive touchscreen operation and PC setup program with startup software
• Recording function with evaluation software and optional paperless recorder
• Autotuning for controller parameter determination; math, logic and binary processing functions
• Programmable function fields and individually configurable process screens with interactive inputs
• Teleservice, email notification and integrated web server; Modbus master function; JUMO Device App visualisation
• Approvals: cULus, DIN EN 14597, GL, AMS2750/CQI-9
