Universal indicator JUMO diraVIEW

resistanceprocesscurrent

Overview

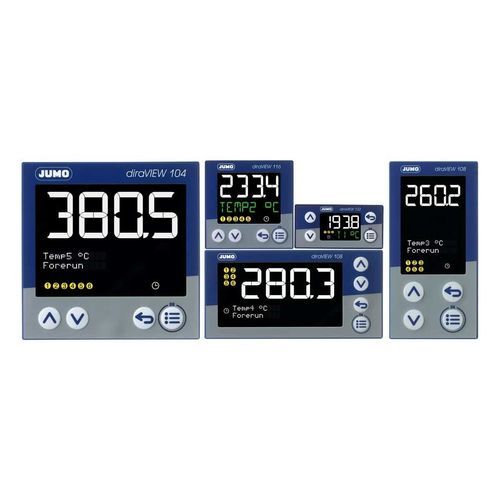

The JUMO diraVIEW 104/108/116/132 are universal digital indicators for panel mounting or DIN-rail adapter, designed to display and monitor process variables in industrial applications. Models offer 18-segment LCD or pixel-matrix displays and a user-configurable analog input for RTD, thermocouple, 0(4)-20 mA, 0(2)-10 V and resistive sensors. Standard functions include min/max memory, hold, tare, limit-value monitoring, timers and a service counter.

Highlights

• Creation of individual ST-code applications
• Intuitive configuration and operation
• Fast and simple startup

Technical data

• Display: 18-segment LCD or pixel-matrix (models 104/108)
• Inputs: 1 user-configurable analog input for RTD, thermocouple, 0(4)-20 mA, 0(2)-10 V, resistance/potentiometer
• Outputs: relay variants (1 or 2 × 3 A/230 V AC), logic output 0/14 V (alternative to digital input 1), optional analog output, PhotoMOS® relay
• Digital inputs: 2 potential-free digital inputs (one can be used as logic output)
• Calibration accuracy: options 0.1 % or 0.25 %
• Galvanic isolation: 3000 V between measurement input and supply
• Interfaces: USB setup interface (powered), optional RS485
• Supply: AC/DC 20–30 V or AC 110–240 V
• Operating temperature: -10 to +55 °C
• Protection: front IP65
• Terminals: spring-cage / PUSH IN technology
• Alarms: up to 4 limit-value monitors

Specifications

• Available formats (panel cut-out): 104 (96×96 mm), 108 variants (48×96 mm or 96×48 mm), 116 (48×48 mm), 132 (48×24 mm)
• Special features: math & logic functions, ST code programming, min/max memory and display, hold, tare for weighing, timers, service and operating hours counter
• Connections: spring-cage terminals with PUSH IN technology
• Installation: panel cut-out or DIN-rail adapter
