Ultrasonic transit-time flow meter flowTRANS US W01

volumefor liquidsDN15 - 1/2"

Product Description
The flowmeter measures precisely in conductive and non-conductive media. Ultrasonic (transit-time) technology provides wear-free, maintenance-free operation. The metal-free plastic housing and high-performance plastic pipe in several nominal widths allow flexible installation, including for corrosive media.

Short Description
Ultrasonic flowmeter for liquids.

Availability
In stock.

Nominal width

• DN 15 (1/2 in.)
• DN 20 (3/4 in.)
• DN 25 (1 in.)
• DN 32 (1 1/4 in.)

Images

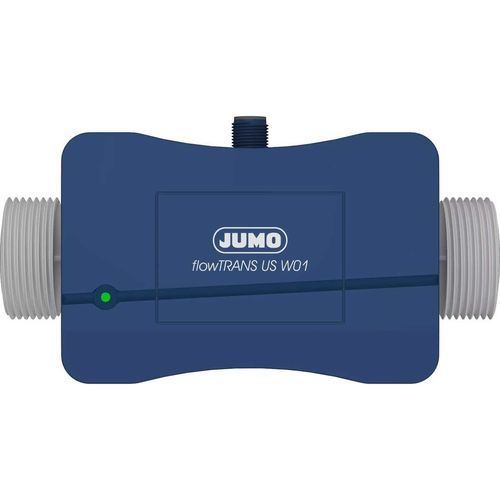

JUMO flowTRANS US W01 (main product image)

Technical specifications

• Measuring principle: Ultrasonic (transit time)
• Accuracy: 2 % of the measured value
• Measuring dynamics: Up to 1:100 (0.1 to 10 m/s)
• Medium temperature: Up to 80 °C (up to 95 °C with lower accuracy)
• Nominal pressure: PN 16
• Ambient temperature: 70 °C
• Outputs: Pulse output (up to 10 kHz), analog output (4 to 20 mA)
• Display: LED status display
• Process connection: Pipe made of high-performance plastic with nominal widths from DN 15 to DN 32, G-type external thread with integrated seal
• Materials in contact with the medium: PPSU, PEEK, EPDM (FKM)
• Protection type: IP65/IP67
• Housing: Metal-free plastic housing
• Electrical connection: M12 connector
• Approvals: UL (except for DN 15)
• Datasheet: available
