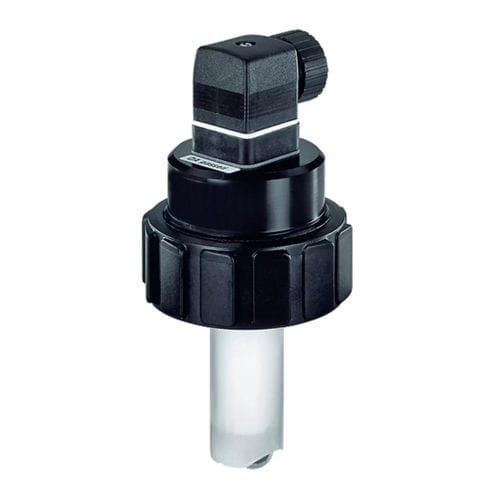

Paddle flow sensor flowTRANS PW I01

ultrasonicfor liquidsstainless steel

The product continuously measures the flow velocity of neutral or slightly aggressive liquids that have low solid content Flow velocities of 0.3 to 10 m/s can be measured. The measured value appears as a pulse frequency. eneral technical data Measuring range - 0.3 to 10 m/s Nominal pressure - PN 10 Medium temperature - 80 °C Nominal pipe width - DN 15 to DN 400 Output - Pulse frequency, 0 to 300 Hz, duty cycle 50 % Measuring accuracy - ≤ ± 2.5 % of the measured value (standard calibration factor); ≤ ± 1 % of the measured value (Teach-In) Parts in contact with medium - PVDF, ceramic, FKM, or EPDM Voltage supply - DC 12 to 36 V Medium - Liquids – low viscosity, slightly aggressive, low solid content Accessories - T-pieces; welded sockets; pipe clamps; PCV, or stainless steel
