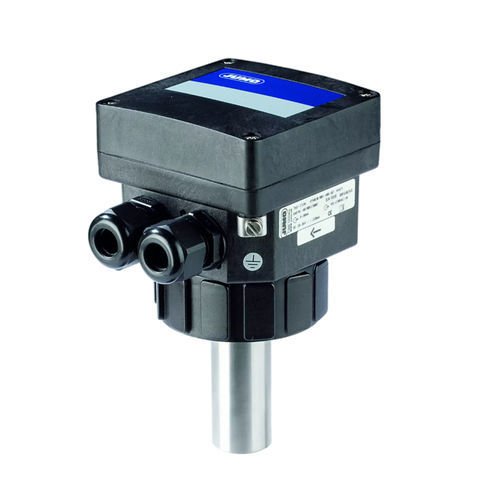

Magneto-inductive flow transmitter flowTRANS MAG I01

ultrasonicinsertionstainless steel

The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz. general technical data Nominal pressure - PN 16 Medium temperature - Max. 150 °C Nominal pipe width - DN 15 to DN 400 Outputs - 4 to 20 mA; pulse frequency; switching output (changeover contact relay) Measuring accuracy - ≤ ± 3.5 % of the measured value (standard calibration factor); ≤ ± 0.5 % of the measured value (Teach-In) Medium - Conductive liquids as of 20 μS/cm Voltage supply - DC 18 to 36 V Accessories - T-fittings made of PVC or stainless steel; PE or stainless steel welded socket; PP connection clamps (type 406090)
