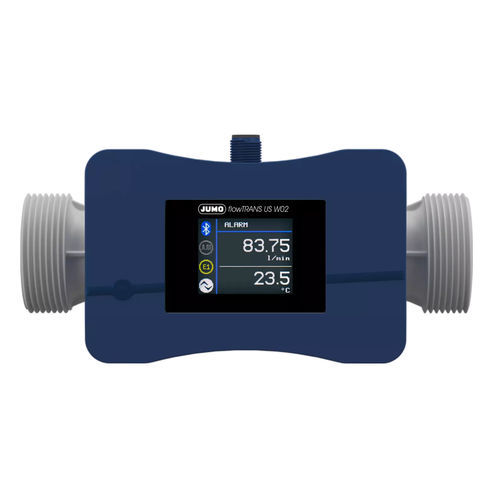

Ultrasonic flowmeter flowTRANS US W02

positive displacementplasticRS485

Absolut wear and maintenance-free ultrasonic technology allows the flowmeter to measure with high precision and independent of the conductivity. It can also be extended with temperature and pressure sensors. The device can be integrated into sensor networks via JUMO digiLine or IO-Link interface. Configuration is convenient via Bluetooth and app. general technical data Accuracy - 1 % of the measured value Measuring dynamics - Up to 1:100 (0.1 to 10 m/s) Medium temperature - Up to 80 °C (up to 95 °C with lower accuracy) Nominal pressure - PN 16 Ambient temperature - 60 °C Outputs - IO-Link (configurable: Pulse output (up to 10 kHz), Analog output, Binary input/output Display - TFT display for easy operation and measured value display Process connection - Pipe made of high-performance plastic with nominal widths from DN 15 to DN 32, G-type external thread with integrated seal Materials in contact with the medium - PPSU, PEEK, EPDM (FKM) Additional measurands (optional) - Temperature, pressure Special features - Configuration via Bluetooth and app as well as RS485 and software (Digital Sensor Management); measurement of up to 3 measurands at 1 measuring point Approvals - UL (except for DN15)
