Diameter measuring device MESSBOI 100 LC / LC-MID

speedlengthscanning

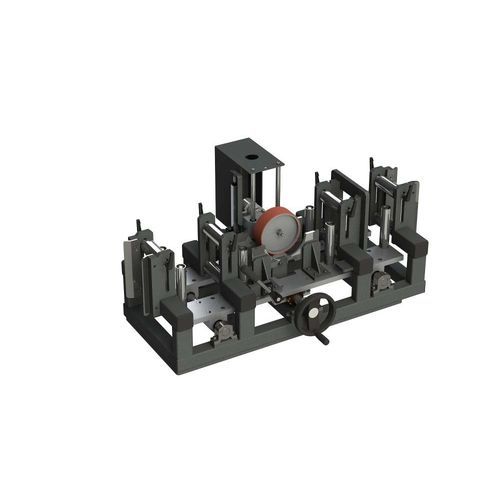

Stationary, digital length measuring device for winding materials up to max. 100 mm outer Ø with optional conformity assessment (formerly calibration). Convincing due to the automatic and tamper-proof data storage of all measurements This measuring device consists of a solid base body with guiding rollers to which the measuring device is mounted. The scanning of the material to be measured is ensured by a measuring wheel. Basic equipment Four sets of inlet and outlet rollers, adjustable in height and centrally adjustable in width Mechanical measuring wheel mounted on two pillar guides The length is measured by a measuring wheel Measuring wheel rests on the material due to its dead weight A rotary pulse encoder with connection cable A preselection counter LC MID with interface RS 232 with two potential-free electric contacts for controlling the fast motion / inching function of an adjustable winding drive or a luminous indicator. Supervision of the calibration speed with luminous indicator Supplementary equipment Diameter recognition mounted on the MESSBOI 100 to determine the diameter of winding good Conformity assessment / MID (formerly first calibration)
