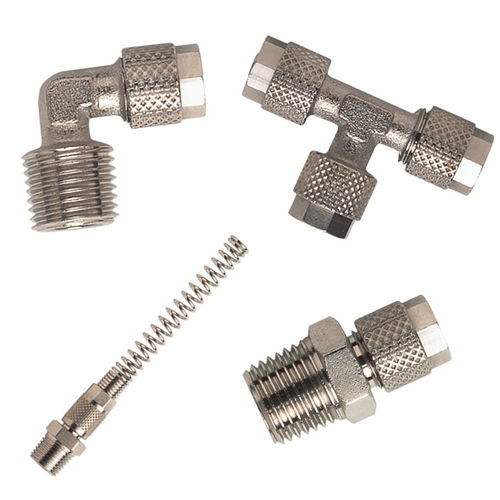

Hydraulic fitting M series

for compressed airthreadedquick

The working pressures and working temperatures depend on which type of tube is used, for this reason, the values must be determined in accordance with the tube’s features. For the “swivel and thread with O-RING” fittings, the values are: Temperatures Minimum temperature: -20 °C Maximum temperature: +80 °C Tapered: gas in conformity with ISO7.1, BS 21, DIN 2999. Parallel: gas in conformity with ISO 228 Class A. Metric: in conformity with ISO R/262. Fluids Fluids and liquids at low pressure compatible with the connection. Connection Tubes Plastic tubes: PA6, PA11, PA12, Polyethylene, Polyurethane, PEF, PTFE.
