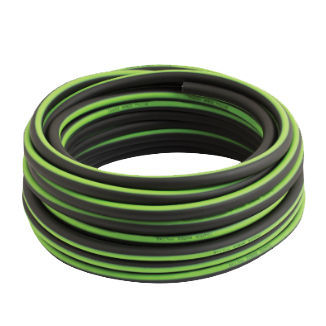

Hydraulic hose RH seriesrubberpolyesterindustrial
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- rubber, polyester
- Applications
- industrial
- Other characteristics
- abrasion-resistant, oil-resistant, braided
- Inner diameter
Max.: 25 mm
(0.984 in)Min.: 6.3 mm
(0.248 in)- Outer diameter
Max.: 37 mm
(1.457 in)Min.: 14 mm
(0.551 in)- Pressure
20 bar
(290.075 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Delivered length
30 m
(98'05" )
Description
The hose feels and looks like rubber without the associated negative aspects.
Excellent ozone resistance, making it suitable for outdoor applications
Resistant to permanent kinks
Resistant to most oil and fuel
Cover: Black with Green Stripe
Lining: Black, Oil Resistant
Braid: High Tensile Polyester
Safety Factor: 3:1
