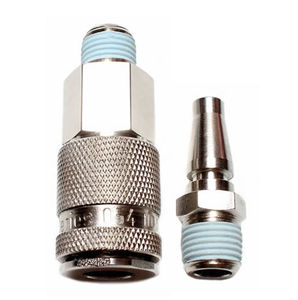

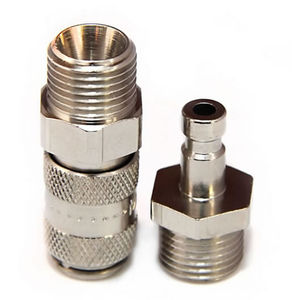

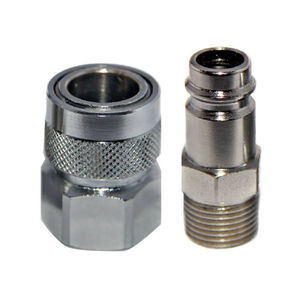

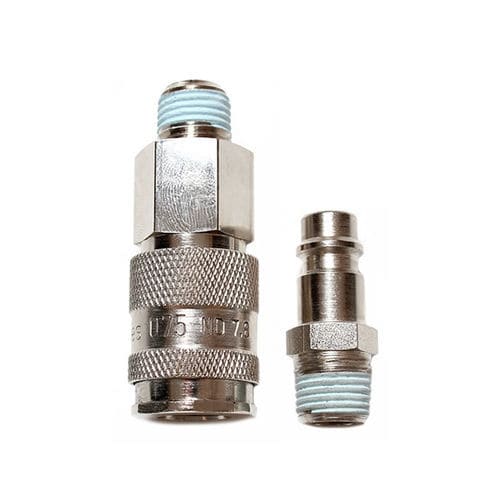

Hydraulic fitting 075 seriesthreadedringEPDM
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- threaded, ring
- Material
- EPDM, brass, stainless steel, nickel, NBR, medium
- Gender
- female
- Other characteristics
- compact, spring
- Diameter
23 mm
(0.906 in)
Description
he 075 series is specially suited to compressed air applications. Its compact dimensions and single handed operation make it suitable for numerous applications.
Advantages
Single handed operation.
Small dimensions.
All versions interchangeable
Coupling Specifications
Back Body: Brass (MS 58) Nickel Plated
Valve Body: Brass (MS 58) Nickel Plated
Sleeve: Steel Nickel Plated
Spring and Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Seals: NBR
Plug Specifications
Plug Body: Steel Nickel Plated
Working Temperature (Depending on Medium):
-20°C to +100°C (NBR)
-40°C to +130°C (EPDM)
-15°C to +200°C (Viton)
Working Pressure: 35 Bar - maximum static working pressure with safety factor of 4 to 1
