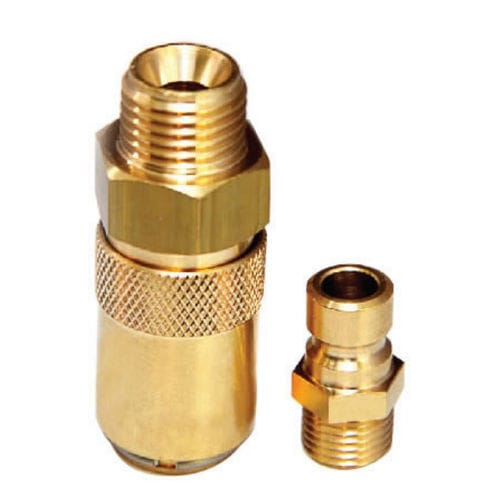

Hydraulic fitting 091 seriesthreadedPTFE-coatedbrass
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- threaded
- Material
- PTFE-coated, brass, stainless steel, medium
- Gender
- male, female
- Other characteristics
- spring
- Diameter
22 mm
(0.866 in)
Description
Specifically designed for the connection of coolant lines to mould tools
Advantages
Suitable for Water, Grease, Air & Oil with locking rings
Springs & locking balls made from stainless steel
Available with or without valve
Optimum flow capacity at smallest dimensions
Coupling Specifications
Back Body: Brass (MS 58)
Valve Body: Brass (MS 58)
Sleeve: Brass (MS 58)
Spring and Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Seals: FKM (PTFE-coated)
Plug Specifications
Plug Body: Brass (MS 58)
Working Temperature (Depending on Medium):
-25°C to +200°C (Viton)
