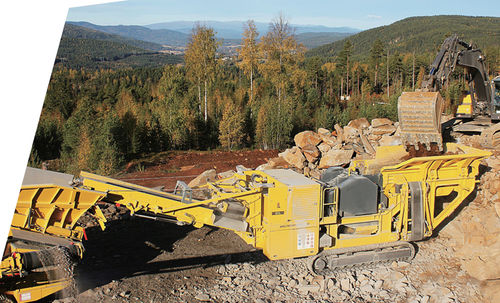

Jaw crusher B3

mobile

Performance highlights Feed size up to 600 mm (24”) Independent double deck vibrating pre-screen 2.300 x 1.000 mm (7’7" x 3’3") Feed opening 1.110 x 750 mm (44” x 29”) C.S.S. min. - max. 45 - 180 mm (1 3/4” - 7”) Capacity up to 400 tonnes / hour Full hybrid electric driven, energy saving version available Hydraulic sliding frame for service access under the feeding and scalping unit Optional single deck after screen 2.800 x 1.200 mm (9'2" x 3'11") Intake hopper suitable for wheel loader and excavator, 5 m³ (6,5 yard³) Hydraulic gap adjustment Smart sequential auto start/stop from remote Ability to track while producing 2 speed track drive Extensive option list to configure to your application Removable engine /generator compartment on full hybrid e version Specifications Transport dimensions Working dimensions Weight - 44,2 t (45 sT) - Length - 14.000 mm (45”) - 15.655 mm (51’3”) Height - 3.400 mm (11’) - 4.025 mm (13’3”) Width - 2.725 mm (8’10”) - 6.045 mm (20’)
