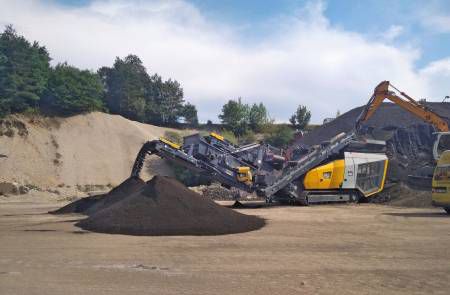

Impact crusher R3

stationary

Performance highlights Available in full hybrid e version Equipped in closed circuit < 30.000 kg, easy to transport without permit Hopper 3,5 m³ (4,5 yard³) Vibrating feeder with punched plate pre screen 1.200 mm x 920 mm (4’ x 3’) Due to integrated pre screen, higher crushing capacities and less wear Inlet opening (H x W) 770 x 960 mm (30” x 38’’) Superior rotor diameter 1.100 mm (44”) Optional 3rd impact panel as milling beam to produce high value end product Optional single deck after screen 3.100 x 1.400 mm (9’ x 4’) Capacity up to 250 tonnes / hour Load sensing hydraulic system reduces fuel usage by 25% 2 speed track drive Highest reduction ratio Superior product shape Extensive option list to configure to your application Optional windsifter Specifications Transport dimensions Transport dimensions with after screen Working length without after screen Working length with after screen Weight - 27,5t (30sT) - ± 33,2 t (36 sT) - - Length - 10.000 mm (32’10”) - 12.900 mm (42’4”) - 11.525 mm (37’10”) - 14.218 mm (46’8”) Height - 3.200 mm (10’6”) - 3.200 mm (10’6”) - - Width - 2.540 mm (8’4”) - 2.540 mm (8’4”)
