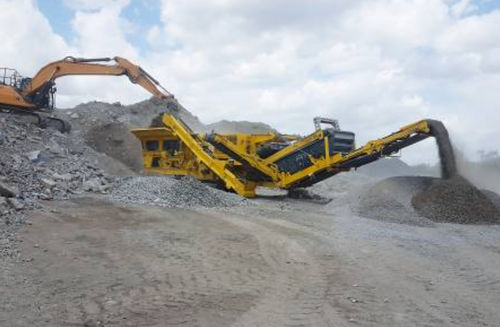

Impact crusher R5

mobile

Hopper 5 m³ (6,5 yard³) Independent 2-deck pre-screen 2.200 x 1.000 mm (7’ x 3’) Due to long pre screen, higher crushing capacities and less wear Inlet opening (H x W) 800 x 1.050 mm (31” x 41”) Rotor diameter 1.260 mm (50”), rotor width 1.000 mm (39”) Swiveling oversize return conveyor / stockpile conveyor Optional single deck after screen 3.300 x 1.500 mm (11’ x 5’), 4,95 m² Optional double deck after screen Also available in Electric version with electric driven Rotor and plug-in / plug-out functionality Tilting chassis Capacity up to 350 tonnes / hour Load sensing hydraulic system reduces fuel usage by 25% 2 speed track drive Highest reduction ratio Superior product shape Extensive option list to configure to your application Optional windsifter
