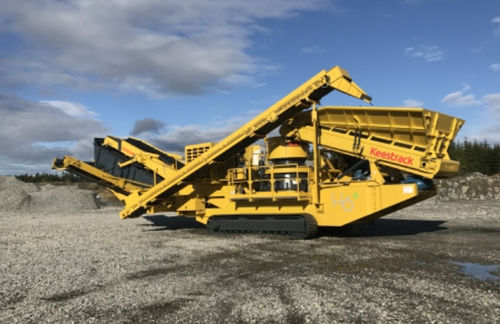

Cone crusher H6

mobiletertiary

Can be used in tertiary or quarternary crushing Designed to crush the toughest of rock and ore Feed size up to 215 mm (8 5/10") C.S.S. min. - max. 16 - 44 mm (1" -2") depending on crushing chamber configuration Hopper 8 m³ (10 yard³) Other configurations possible with different crushing chambers Diesel / electric drive 2 speed track drive Optional 3-deck screen: Top: 4.640 mm x 1.800 mm, Middle and bottom 4.500 mm x 1.800 mm (14'9" x 5'10") Effective screen area 8,1 m² on each deck, with return conveyor Best product shape Extensive option list to configure to your application Removable engine /generator compartment
