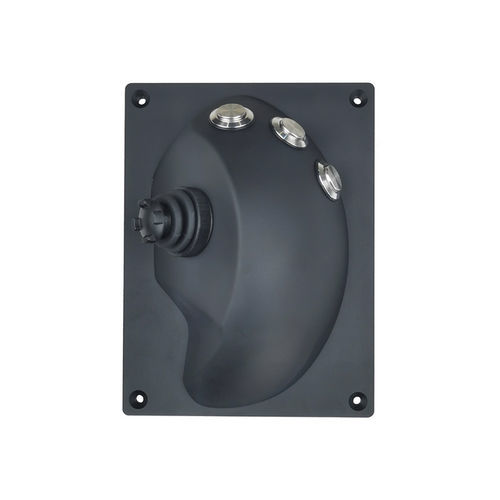

Joystick mouse with buttons KH-TPM-2A

3-keyfor remote controlfor marine applications

Overview
The KH-TPM-2A is an embedded joystick mouse module designed for precise directional cursor control. It replaces the traditional trackball with a durable joystick housed in an ergonomic titanium-black high-strength alloy front panel with three tactile function buttons. The flush panel-mount design ensures secure installation and reliable operation in demanding industrial environments.

Applications
Ideal for integration into industrial control panels, simulation consoles, ship control systems, military equipment and other machines where joystick-based navigation provides better control than traditional pointing devices.

Features

• Panel-mount design for secure integration
• Titanium-black high-strength alloy front panel
• Integrated joystick for directional control
• Ergonomic mouse shape for operator comfort
• Three tactile buttons (Left, Middle, Right)
• Interface options: USB or R23

Specifications (from product table)
Dimensions: 109 x 146 mm
Keys: 3 keys (Right, Middle, Left)
Front panel: Titanium black color; high-strength alloy material
Interface: USB (option: R23)
Mouse type: Joystick mouse
Power supply: 5.0V DC ±5%
OS compatibility: All Windows versions; Vista; Linux; Unix; Mac OSX; iOS; Android
Temperature range: Storage: -45°C to +85°C; Operating: -40°C to +80°C
Humidity: 30–95% RH
Atmospheric pressure: 60–106 KPa
MTBF: > 50,000 hours
MTTR: < 30 minutes
Warranty: 1-year limited warranty

Technical specifications

• Model: KH-TPM-2A
• Form factor: Flush panel-mount joystick mouse module
• Front panel material: High-strength alloy, titanium black finish
• Pointing device: Integrated joystick (replaces trackball)
• Buttons: Three tactile buttons (Left / Middle / Right)
• Interfaces: USB or R23
• Supply voltage: 5.0V DC ±5%
• Compatibility: Windows, Vista, Linux, Unix, Mac OSX, iOS, Android
• Operating temperature: -40°C to +80°C; Storage temperature: -45°C to +85°C
• Relative humidity: 30–95% RH
• Atmospheric pressure: 60–106 KPa
• Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
