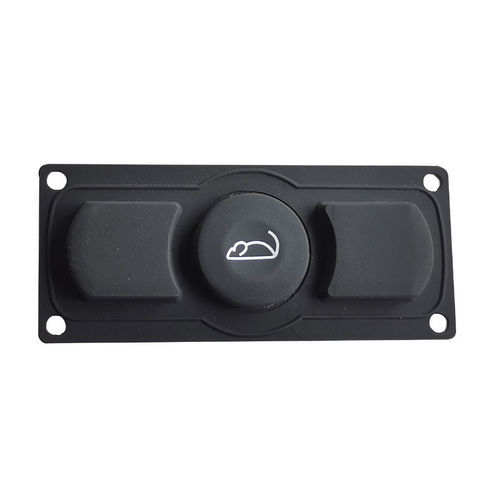

Force-sensing resistor pointing device KH-M76-01

panel-mountfor industrial applicationsfor the food industry

Product Overview
The KH-M76-01 is an advanced, IP67 dynamically sealed pointing device utilizing Force Sensing Resistor (FSR) technology. It features a central pressure-sensitive zone that enables improved multi-directional cursor response compared to standard designs, offering greater flexibility for diagonal and sweeping movements. Its one-piece seamless silicone cover ensures complete waterproofing and easy cleaning, while two integrated buttons deliver reliable left/right functionality for demanding environments.

Applications
Ideal for medical equipment, industrial control panels, food processing machinery, and navigation systems where responsive, flexible cursor control and a fully sealed interface are required.

Features

• Advanced Force Sensing Resistor (FSR) technology
• Multi-directional cursor control for improved diagonal/sweeping movement
• IP67 dynamically sealed waterproof design
• One-piece seamless silicone cover for easy cleaning and full sealing
• Two integrated buttons (Left, Right)
• USB interface

Specifications
Dimensions: 76 x 32.5 mm
Force: 150～200N
Keys Travel: 2.0 mm
Material: Silicone Rubber
Output: USB
Power Supply: 5.0V DC ±5%
OS Compatibility: All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android
Temperature Range: Storage: -45°C to +90°C; Operating: -40°C to +80°C
Compliant Standard: RoHS, CE and FCC
Protection Level: IP67 (front)
Humidity: 20–95% RH
Atmospheric Pressure: 60–106 Kpa
MTBF: > 50000H
MTTR: < 30min
Warranty: 1-year limited warranty

Notes
Seamless silicone cover provides ease of cleaning and full front waterproof protection. Designed for responsive navigation in demanding medical and industrial environments.
