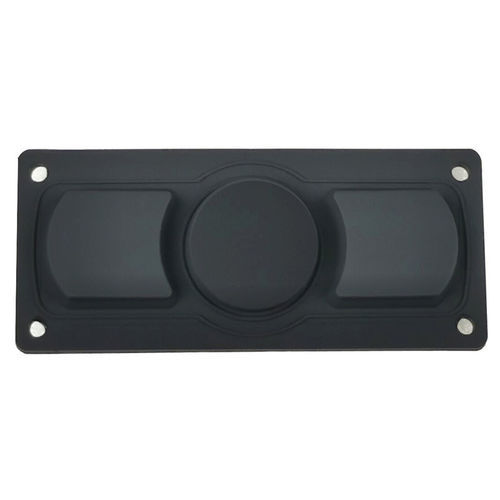

Force-sensing resistor pointing device KH-M76-V1

panel-mountindustrialfor the food industry

Product overview
The KH-M76-V1 is a rugged, IP67 dynamically sealed pointing device using Force Sensing Resistor (FSR) technology for precise pressure-based cursor control. Its one-piece seamless silicone cover provides a waterproof, easy-to-clean surface with no moving parts. Two integrated buttons provide reliable left/right clicks for demanding medical and industrial environments. The device is suited for integration into medical equipment, control panels and food-processing machinery requiring a fully sealed pointing interface.

Features

• Force Sensing Resistor (FSR) technology for accurate pressure-based pointing
• IP67 dynamically sealed waterproof design
• One-piece seamless silicone cover (easy to clean)
• Two integrated buttons (left and right)
• USB interface output

Specifications
Dimensions: 76 x 32.5 mm
Force activation: 150–200 N
Key travel: 2.0 mm
Material: Silicone rubber
Output: USB
Power supply: 5.0V DC ±5%
OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OS X / iOS / Android
Temperature range: Storage: -45°C to +90°C; Operating: -40°C to +80°C
Standards: RoHS, CE, FCC
Protection level: IP67 (front)
Humidity: 20–100% RH
Atmospheric pressure: 60–106 kPa
MTBF: > 50000 h
MTTR: < 30 min
Warranty: 1-year limited warranty

Intended applications
Designed for medical and industrial environments where a sealed, easy-to-clean pointing device with high reliability and no moving parts is required — examples include medical devices, industrial control panels and food processing equipment.

Technical characteristics

• Model: KH-M76-V1
• Protection: IP67 (front)
• Material: Silicone rubber one-piece cover
• Interface: USB
• Power: 5.0V DC ±5%
• Operating temperature: -40°C to +80°C
• Storage temperature: -45°C to +90°C
• Humidity tolerance: 20–100% RH
• Atmospheric pressure: 60–106 kPa
• Force activation range: 150–200 N
• Key travel: 2.0 mm
• MTBF: > 50000 hours
• Warranty: 1-year limited warranty
• Standards: RoHS, CE, FCC
