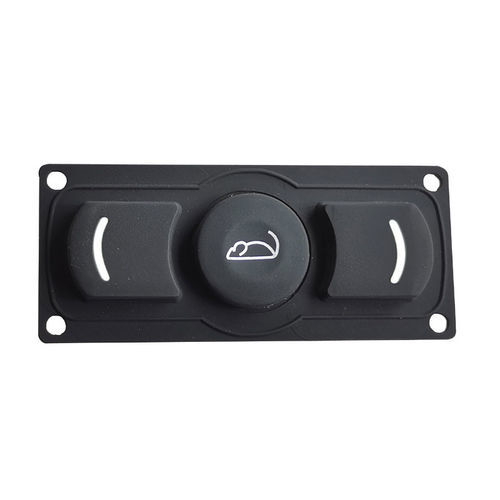

Force-sensing resistor pointing device KH-M76-03

panel-mountportableindustrial

Product overview
The KH-M76-03 is a compact Force Sensing Resistor (FSR) pointing device designed for industrial laptops, mobile workstations and space-constrained control panels. It provides full-range, multi-directional cursor control in a sealed IP67 front enclosure for reliable operation in harsh and humid environments.

Features

• Force Sensing Resistor (FSR) technology for pressure-based cursor control
• Compact footprint for integration into confined panels and consoles
• Multi-directional pointing with two mechanical buttons (left, right)
• Front-side IP67 sealing: dustproof, waterproof and non-corrosive
• USB interface for straightforward integration

Applications

• Integration into industrial laptops and rugged tablets
• Vehicle-mount consoles and mobile workstations
• Compact control panels and operator stations with limited space
• Medical and laboratory instruments requiring sealed pointing controls

Technical specifications

• Model: KH-M76-03
• Dimensions: 76 x 32.5 mm
• Actuation force range: 150–200 N
• Keys travel: 2.0 mm
• Material: Silicone rubber
• Output / Interface: USB
• Power supply: 5.0V DC ±5%
• OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OSX, iOS, Android
• Protection: IP67 (front) — dustproof, waterproof, non-corrosive
• Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
• Humidity: 20–100% RH
• Atmospheric pressure: 60–106 kPa
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Certifications / standards: RoHS, CE, FCC
• Warranty: 1-year limited warranty
