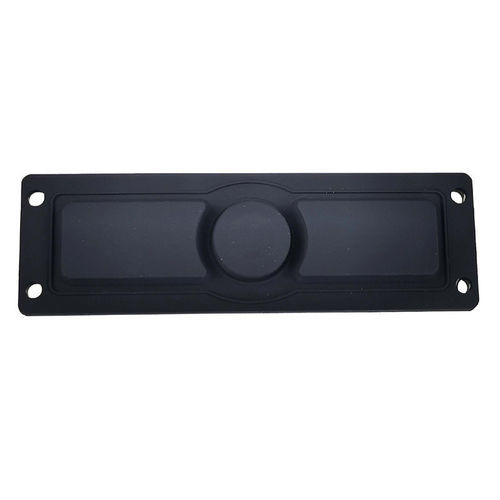

Force-sensing resistor pointing device KH-HT0683C-02

panel-mountindustrialmedical

Product summary
The KH-HT0683C-02 is an ultra-slim, elongated force sensing resistor (FSR) pointing device (84×26 mm) designed for space-constrained industrial and medical environments. The front is IP67 sealed to protect against dust and liquids, providing a low-profile sealed pointing solution for narrow control panels, compact industrial notebooks and specialized workstations.

Features

• Ultra-slim elongated form factor: 84×26 mm
• Force sensing resistor (FSR) technology for precise directional control
• Front IP67 sealing (dustproof, waterproof)
• Two mechanical buttons (left and right)
• USB interface for power and data

Applications

• Integration into narrow control consoles and compact industrial laptops
• Space-limited medical devices and specialized equipment requiring sealed directional control

Technical specifications

• Dimensions: 84 × 26 mm
• Operating force: 150–200 N
• Key travel: 2.0 mm
• Material: Silicone rubber
• Output: USB
• Power supply: 5.0 V DC ±5%
• OS compatibility: All Windows versions, Vista, Linux, Unix, macOS, iOS, Android
• Storage temperature: −45 °C to +90 °C; Operating temperature: −40 °C to +80 °C
• Standards: RoHS, CE, FCC
• Protection level: IP67 (front)
• Humidity: 20–100% RH
• Atmospheric pressure: 60–106 kPa
• MTBF: > 50,000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
