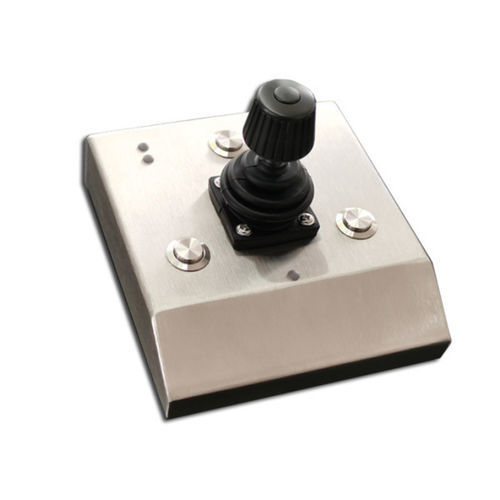

Hall effect joystick KH-MY123

3-axiswith buttons3-key

Overview
The KH-MY123 is a desktop joystick mouse engineered for video surveillance and control room consoles. It integrates a high-resolution three-axis Hall effect joystick for precise PTZ (Pan-Tilt-Zoom) control of network dome cameras, replacing the traditional trackball for intuitive directional input. The device includes three metal buttons and selectable front protection to IP65–IP67, providing a durable, accurate control interface for industrial monitoring and security operations.

Features

• High-resolution three-axis Hall effect joystick for precise PTZ control
• Three metal buttons (left, middle, right)
• Selectable front protection level (IP65–IP67)
• Desktop industrial design with stainless steel front panel
• USB interface

Product Details
Place of origin: China
Brand: CNKHTECH
Certification: CE, ROHS, FCC
Model number: KH-MY123
Application: Designed for video surveillance control rooms, security management consoles and industrial monitoring systems that require precise, responsive control of PTZ network cameras.

Technical specifications

• Dimensions: 123 x 135 x 32 mm
• Keys: 3 keys (right, middle, left)
• Front panel: Stainless steel
• Mouse type: Joystick
• Interface: USB
• Power supply: 5.0V DC ±5%
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
• Storage temperature: -50°C to +100°C
• Operating temperature: -40°C to +80°C
• Protection level: IP65–IP67 (front), optional
• Humidity: 30–95% RH
• Atmospheric pressure: 60–106 KPa
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
