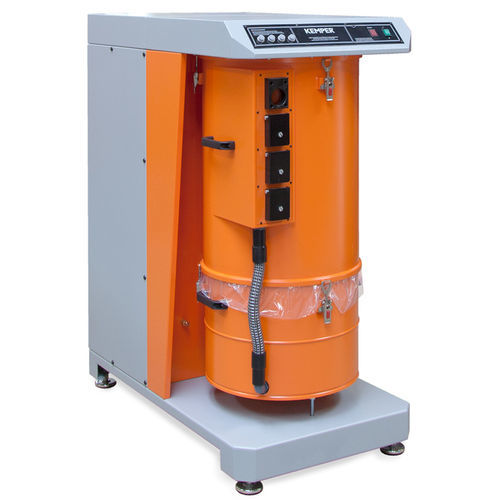

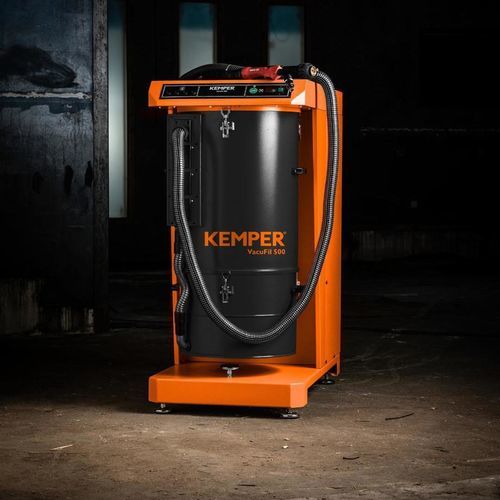

Floor-standing centralized fume extraction system VacuFil 500

weldingwith self-cleaning filterdust

Product description
The VacuFil 500 is a high-vacuum extraction unit for welding fume and dust, designed to serve up to four individual workstations or be integrated into a central piping system.

Applications

• Welding processes (MIG/MAG, laser)
• Materials: steel, aluminium, stainless steel
• Continuous industrial operation and robot/tower extraction

Key benefits

• Automatic filter cleaning for uninterrupted continuous operation
• High separation efficiency with KemTex® ePTFE filter cartridges (surface filtration)
• Flexible connection options: four separate connections or central ducting
• Side-channel compressor for reliable negative pressure generation

Detailed features
The VacuFil 500 handles high concentrations of welding smoke and dust. It is equipped with surface-filtration KemTex® ePTFE cartridges and automatic pulse filter cleaning controlled by differential pressure. The unit supports torch extraction and robot extraction and can be supplied with suction nozzles or high-vacuum extraction arms. A side-channel compressor provides the required negative pressure for industrial extraction tasks. The dust collection container has a 40 L capacity; compressed air for cleaning requires 5–6 bar. Noise emissions are approximately 74 dB(A).

Technical data (table)
Dimensions
Weight: 270 kg
Depth: 1197 mm
Width: 655 mm
Height: 1377 mm

Filter
Filter stages: 1
Separation efficiency ≥: 99.9%
Filter area: 10 m² (KemTex® ePTFE)

Connections
Air outlet (nominal): 1377 mm
Dust collection container: 40 L

Technology
Motor power: 5.5 kW
Rated current: 12.9 A
Sound pressure level: 74 dB(A)
Compressed air supply for cleaning: 5–6 bar

Performance
Max. fan capacity: 700 m³/h
Extraction capacity: 500 m³/h
Turbine capacity: 680 m³/h
Max. negative pressure: 20,000 Pa

Characteristics / technical specifications

• Model: VacuFil 500
• Weight: 270 kg
• Dimensions (D × W × H): 1197 × 655 × 1377 mm
• Filter stages: 1
• Separation efficiency: ≥ 99.9%
• Filter area: 10 m² (KemTex® ePTFE filter cartridges, surface filtration)
• Dust collection container: 40 L
• Motor power: 5.5 kW
• Rated current: 12.9 A
• Sound pressure level: 74 dB(A)
• Compressed air supply: 5–6 bar (for filter cleaning)
• Max. fan capacity: 700 m³/h
• Extraction capacity: 500 m³/h
• Turbine capacity: 680 m³/h
• Max. negative pressure: 20,000 Pa
• Supports up to four workstations or central piping connection
• Automatic filter cleaning with differential-pressure control
