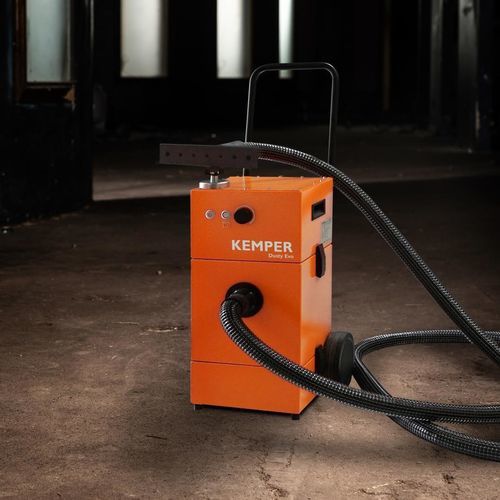

Mobile fume extractor Dusty Evo

weldingautomaticdust

Short description
Lightweight high-vacuum extraction unit with manually cleanable filter. Designed for capture of welding fumes using extraction torches, slot and funnel nozzles; compact trolley format for mobile use.

Applications / Features

• Low to medium smoke/dust volumes
• Intermittent to frequent use; changing workplaces
• Extraction via nozzle, funnel and welding torch
• Repair and maintenance work
• Mobile use on site and in workshops

Highlights
Maximum extraction performance in a compact trolley format. Dusty Evo is an easy-to-operate high-vacuum unit for capturing welding fumes, featuring manual filter cleaning and a large carrying handle for site mobility. Its dimensions are comparable to a small trolley, enabling transport in confined areas.

Double turbine power — Benefits

• High extraction capacity from two high-performance turbines
• Enhanced employee protection with KemTex® ePTFE filter cartridges and surface filtration
• Easy transport on sites thanks to large handle, side grip recesses and wheels
• Mobile operation due to low weight
• Continuous suction control for optimal adaptation to welding processes

Technical data (tabular)
Dimensions:
Weight (kg): 30
Depth (mm): 472
Width (mm): 410
Height (mm): 1004

Filter:
Filter stages: 1
Filter area (m²): 1
Separation efficiency (%) ≥: 99.9

Performance:
Min. underpressure (Pa): 18100
Max. fan capacity (m³/h): 360
Suction capacity (m³/h): 260
Max. underpressure (Pa): 18000

Technology:
Motor power (kW): 1.6
Rated current (A): 8.7
Sound pressure level (dB(A)): 74

Connections:
Dust container volume (L): 6
Connection nozzle Ø (mm): 45

Characteristics / technical specifications

• Model: Dusty Evo
• SKU: 63202
• Weight: 30 kg
• Dimensions (D×W×H): 472 mm × 410 mm × 1004 mm
• Filter stages: 1
• Filter area: 1 m² (KemTex® ePTFE filter cartridge)
• Separation efficiency: ≥ 99.9 %
• Min. underpressure: 18100 Pa
• Max. underpressure: 18000 Pa
• Max. fan capacity: 360 m³/h
• Suction capacity: 260 m³/h
• Motor power: 1.6 kW
• Rated current: 8.7 A
• Sound pressure level: 74 dB(A)
• Dust container volume: 6 L
• Connection nozzle Ø: 45 mm
• Configurable supply voltage: 1 × 110 V / 50/60 Hz or 1 × 230 V / 50/60 Hz
