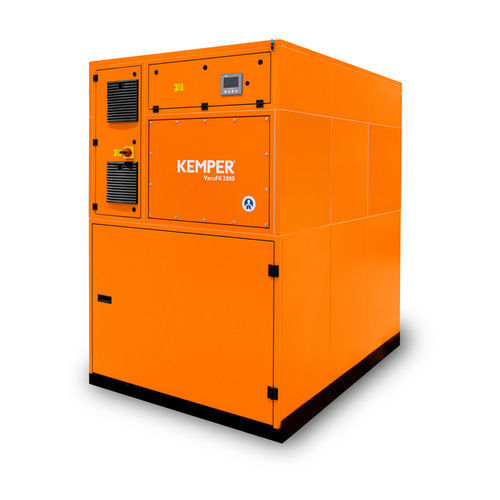

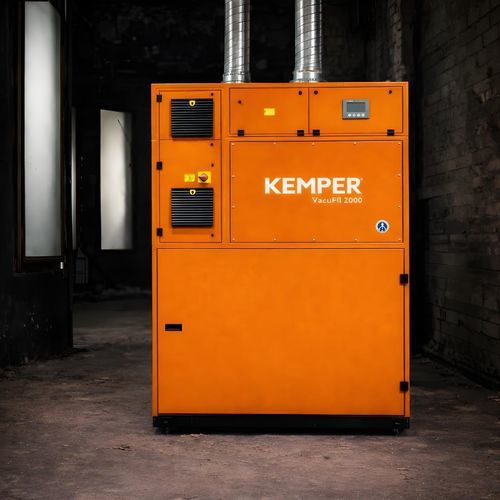

Floor-standing centralized fume extraction system VacuFil 2000

weldingcartridgeautomatic

Overview
The VacuFil 2000 is a central high-vacuum welding fume extraction unit for multiple workstations, offering automatically regulated extraction capacity and energy-efficient continuous operation. The unit is delivered ready to connect (plug & play) and includes forklift pockets for easy installation; it is intended for large welding shops and training centres.

Applications

• High volumes of welding smoke and dust
• Extraction for welding torches, suction nozzles and high-vacuum extraction arms
• Large welding workshops and vocational training centres

Key features

• High extraction capacity with automatic regulation
• Ready-to-connect (plug & play) for fast commissioning
• Contamination-free dust collection via compressed-air fixation of collection containers
• Automatic differential-pressure-controlled filter cleaning for uninterrupted operation
• Energy savings through demand-based extraction volume control
• Intelligent touch-screen control with diagnostic functions
• Flexible integration via potential-free contacts for third-party systems

Technical data (summary)
Weight: 1125 kg
Dimensions (D x W x H): 1870 mm x 1470 mm x 2575 mm
Air inlet / outlet: 315 mm / 315 mm
Filter stages: 1
Filter area: 40 m²
Separation efficiency ≥: 99.9%
Number of filter elements: 4
Min. negative pressure: 9000 Pa
Max. negative pressure: 21000 Pa
Max. fan capacity: 2215 m³/h
Max. extraction capacity: 2000 m³/h
Min. extraction capacity: 100 m³/h
Motor power: 22 kW
Rated current: 40 A
Sound pressure level: 72 dB(A)
Compressed air supply: 5-6 bar

Specifications

• Model: VacuFil 2000
• Weight: 1125 kg
• Dimensions (D x W x H): 1870 x 1470 x 2575 mm
• Air connections: 315 mm (inlet/outlet)
• Filter: 1 stage, 40 m², ≥ 99.9% efficiency, 4 elements
• Operating pressure range: 9000–21000 Pa
• Extraction capacity: 100–2000 m³/h (max. fan 2215 m³/h)
• Motor: 22 kW, rated current 40 A
• Sound pressure level: 72 dB(A)
• Compressed air requirement: 5–6 bar
