Membrane filtration system VacuFil Compact Twin

smoke

Overview

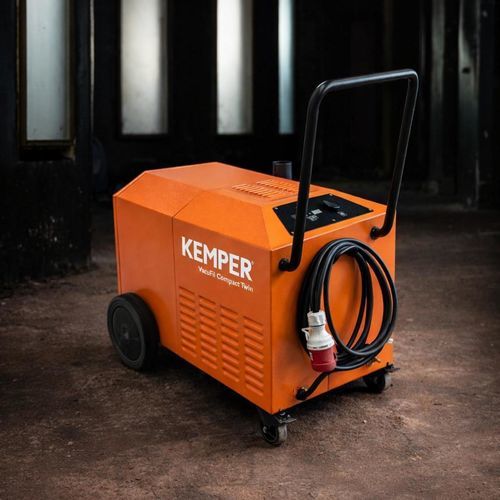

The VacuFil Compact Twin high‑vacuum extraction unit is engineered for medium to large volumes of welding fumes and dust. It provides dedicated extraction for two connected workstations and is designed for permanent industrial use with a cleanable storage filter and a side‑channel blower for negative pressure generation.

Product properties

• Continuous operation capability
• Suitable for welding processes: MIG/MAG
• Materials: steel, aluminum, stainless steel
• Item No.: 82380

Main benefits

• Effective extraction of high smoke and particle loads
• Designed for regular / permanent industrial operation
• Torch extraction for two workstations (alternating or simultaneous use)
• Stepless preselection of extraction power to match different extraction torches
• Intuitive one‑button operation, usable with gloves
• High flexibility with two connections (each NW45/63 mm)
• Expandable via interface for additional modules (e.g. volume flow control, automatic start/stop)

Operation and features
Operation is simplified by a single control button and stepless power regulation. Optional automatic air volume control is available. The side‑channel blower delivers reliable negative pressure for robust industrial extraction. The unit supports alternating or simultaneous connection of two extraction torches and accepts multiple optional extensions to adapt to workshop layouts.

Technical data (table)
Dimensions
Weight in kg: 93
Depth in mm: 1018
Width in mm: 692
Height in mm: 878

Filter
Filter stages: 1
Filter area in m²: 7
Separation efficiency in % ≥: 99.9

Connections
Air outlet in mm: 63
Connection nozzle Ø in mm: 45

Performance
Min. negative pressure in Pa: 32000
Max. fan capacity in m³/h: 280
Extraction capacity in m³/h: 280
Extraction capacity at 18000 Pa in m³/h: 215
Max. negative pressure in Pa: 32000

Technology
Motor power in kW: 3.8
Rated current in A: 8.1
Sound pressure level in dB(A): 73
Compressed air supply in bar: 6-8

Technical specifications

• Model: VacuFil Compact Twin
• Item No.: 82380
• Weight: 93 kg
• Dimensions (D × W × H): 1018 × 692 × 878 mm
• Filter stages: 1; Filter area: 7 m²; Separation efficiency ≥ 99.9%
• Air outlet: 63 mm; Connection nozzle Ø: 45 mm; Two connections NW45/63 mm
• Extraction capacity: max. 280 m³/h; at 18,000 Pa: 215 m³/h
• Negative pressure: up to 32,000 Pa
• Motor power: 3.8 kW; Rated current: 8.1 A
• Sound pressure level: 73 dB(A)
• Compressed air supply: 6–8 bar
• Suitable for MIG/MAG welding; materials: steel, aluminum, stainless steel
• One‑button operation, stepless power preselection, optional automatic air volume control, side‑channel blower
