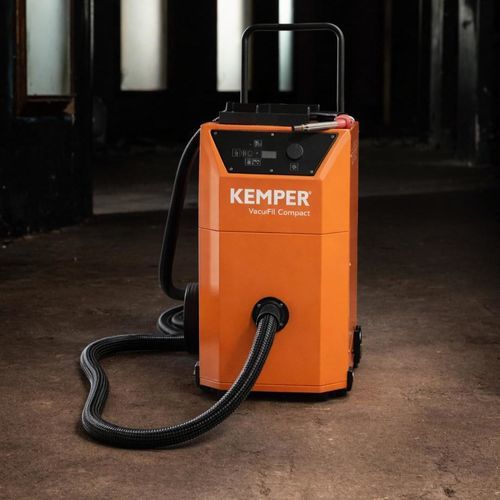

Mobile fume extractor VacuFil Compact

industrialweldingcartridge

Overview
The high-vacuum extraction unit VacuFil Compact is designed for medium to large volumes of welding fume and dust. It features a large storage filter, one-button operation usable with gloves and a side-channel blower to generate the required vacuum. Multiple optional accessories such as automatic airflow control are available.

Applications

• Continuous/regular use
• Burner extraction (welding torches)
• Processes: Laser, MIG/MAG
• Materials: steel, aluminium, stainless steel
• Mobile or changing workstations

Product description
The VacuFil Compact is a high-vacuum, mobile extraction unit suited for industrial environments with medium to large fume and dust loads. The large cartridge/storage filter provides high separation efficiency while the ergonomic single-button control enables safe operation even with protective gloves. The side-channel blower ensures robust suction performance for demanding applications.

Advantages

• Stepless preselection of suction power for various extraction torches
• Intuitive one-button control, operable with gloves
• Wide range of optional equipment (e.g. automatic airflow regulation)
• High suction capacity via side-channel blower
• Compact, suitable for changing workplaces

Configuration examples

• Supply voltage: 1 x 230 V / 50 Hz or 3 x 400 V / 50 Hz (3 x 400 V selected)
• Filter material: KemTex® ePTFE membrane filter cartridges (selected)
• Filter type: Cleanable filter (selected)

Technical specifications

• Weight: 65 kg
• Dimensions (D x W x H): 625 mm x 589 mm x 1191 mm
• Filter stages: 1
• Filter area: 7 m²
• Separation efficiency ≥: 99.9 %
• Air outlet: 63 mm
• Connection socket Ø: 45 mm
• Minimum vacuum: 31,000 Pa
• Maximum fan capacity: 220 m³/h
• Suction capacity (standard): 170 m³/h
• Maximum suction capacity: 160 m³/h
• Suction capacity at 18,000 Pa: 100 m³/h
• Maximum vacuum: 31,000 Pa
• Motor power: 2.2 kW
• Rated current: 5.8 A
