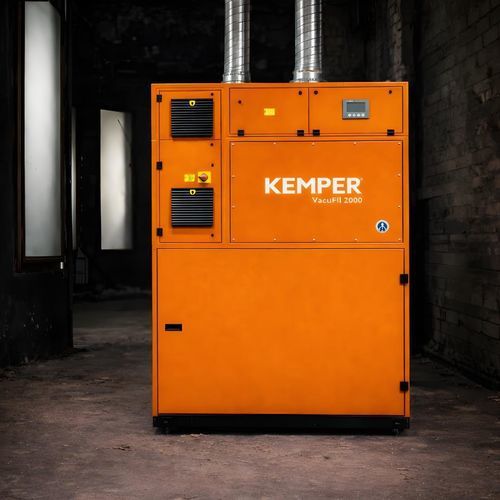

Floor-standing centralized fume extraction system VacuFil 4000

industrialweldingwith self-cleaning filter

Product overview
High-vacuum welding fume extraction system for multiple workstations, offering up to 4000 m³/h extraction capacity in a compact central unit.

Applications / Use cases

• High levels of welding smoke and dust
• Extraction at welding torches, suction nozzles and high-vacuum extraction arms
• Large welding workshops, production lines and training centres

Highlights
Compact central extraction unit with automatic extraction volume control and energy-efficient operation. Delivered ready-to-connect (plug & play) and designed for simple on-site installation with forklift pockets.

Advantages

• Plug & play delivery for fast installation
• Contamination-free dust collection using compressed-air fixation of dust containers
• Space-saving compact design
• Continuous operation via differential-pressure controlled automatic filter cleaning
• Energy savings through automatic extraction volume regulation
• Intuitive operation via touch-screen control with diagnostic functions
• Flexible integration with third-party systems via potential-free contacts

Technical specifications

• Model: VacuFil 4000
• Weight: 1410 kg
• Dimensions (D x W x H): 1870 x 1470 x 2575 mm
• Air inlet / outlet: 315 mm
• Filter stages: 1
• Filter area: 60 m²
• Separation efficiency: ≥ 99.9 %
• Number of filter elements: 6
• Negative pressure (min / working): 9000 Pa / 21000 Pa
• Fan capacity (max): 4430 m³/h
• Extraction capacity: 200 – 4000 m³/h
• Motor power: 45 kW
• Rated current: 80 A
• Sound pressure level: 73 dB(A)
• Compressed air supply: 5–6 bar
