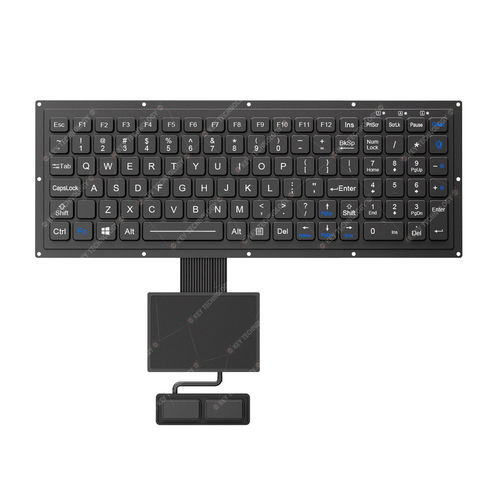

Panel-mount keyboard K-TEK-M315KP-FN-BL-FC-KC+TP85-DML+2K-PC

carbon contactwith 2 mouse keys102-key

1. Product Overview

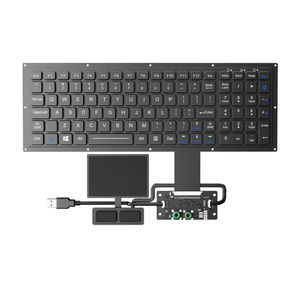

This is a 102-key IP67 fully sealed ultra-thin embedded rugged keyboard, built with ultra-thin FPC and semi-reinforced stainless steel back plate, matched with 400DPI sealed wide-temperature waterproof external touchpad. It adopts premium P+R construction and carbon contact plus FPC carbon-on-gold key switches, delivering silent, stable and accurate input without key missing or jamming. Equipped with independent numeric keypad, full-set F1-F12 function keys, adjustable white backlight and FN+Clean quick cleaning function for easy maintenance without disassembly. It supports standard panel mount installation, passes full MIL-STD-810H environmental tests and optional MIL-STD-461G EMC standards, fully meets military-grade ten major performance requirements, and owns independent technical patent No. 202420937267.2, perfectly suitable for all kinds of severe industrial and military working scenarios.

2. Key Features
102 keys layout with independent numeric keypad and top 12 F1-F12 function keys, plus 2 mouse buttons
Front panel IP67 full waterproof and dustproof sealing grade
Premium P+R structure (PC keycaps + rubber base), durable anti-microbial chemical resistant surface coating
Carbon contact + FPC carbon-on-gold key switch technology, stable long-term operation
1.50mm±0.10mm standard key travel, comfortable tactile feedback, silent typing
Built-in ultra-thin FPC & stainless steel reinforcing back plate, solid and ultra-thin design
400DPI high precision wide-temperature sealed external touchpad
Adjustable white backlight design for dark environment operation
FN+Clean combination cleaning function, no need to detach from equipment
Strictly compliant with MIL-STD-810H military environmental standard, optional MIL-STD-461G electromagnetic compatibility standard
Military-grade ten core performance indicators fully satisfied
Long service life, low failure rate and easy maintenance

3. Applications
Vehicle control systems, aerospace equipment, naval & maritime facilities, radar operating consoles, industrial display control terminals, rugged portable laptops, UAV ground stations and other military & harsh industrial field equipment.

4. Mechanical Data
Total Keys: 102 keys + 2 mouse buttons
Key Switch Technology: Carbon contact + FPC carbon-on-gold
Key Travel: 1.50 mm ± 0.10 mm
Switch Service Life: More than 5 million operations
Actuation Force: 1.2 N ± 0.2 N
Net Weight: Approximately 200g
Installation Type: Panel mount

5. Electrical & Compliance Data
Supply Voltage: DC +5V ±5%
Working Current: ≤30mA (backlight off); ≤300mA (backlight on)
EMC Standard: EN 55032:2015, EN 55035:2017
Overall Service Life: More than 5 years
Connection Interface: USB
System Compatibility: Windows full series, Linux, Unix, Mac OSX, Vxworks, Android, U-cos (to be confirmed)
Certifications: RoHS compliant, CE, FCC certified
Patent Number: 202420937267.2

6. Environmental Adaptability & Reliability
Environmental Performance
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -50℃ ~ +85℃
Working Atmospheric Pressure: 57kPa ~ 106kPa
Humidity Resistance: 30℃~60℃, 95%RH, 10 cycles total 240 hours
Vibration Resistance: 0~2000Hz, 1mm displacement, 70m/s² acceleration
Impact Resistance: 40g peak acceleration, 11ms pulse, total 18 times triaxial impact
Temperature Shock Resistance: -55℃ to 75℃ cyclic test, total 12 hours
Fungus Resistance: Standard multi-strain test, continuous 28 days
Salt Spray Resistance: Total 96 hours cyclic salt spray corrosion test
Rainproof Performance: Wind speed ≥18m/s, continuous 3-hour blowing rain test
Dustproof Performance: Segmented high & low temperature dust blowing test
Drop Resistance: 122cm drop height, 26 times all-round drop test
Reliability Index
Protection Level: IP67 (front panel)
Key Actuation Lifespan: Over 5 million times
MTBF: More than 20000 hours
MTTR: Less than 30 minutes
Military Standard: Fully conform to MIL-STD-810H; optional MIL-STD-461G (EMC/EMI/EMS/ESD)

7. Technical Specifications
Product Type: Ultra-thin Embedded Military Grade Rugged Keyboard
Layout: 102 keys with numeric keypad + F1-F12 function keys
Touchpad Spec: 400DPI wide-temperature sealed external touchpad
Keyboard Panel Dimension: 315.0 mm × 108.0 mm
Touchpad Dimension: 86.0 mm × 61.0 mm
Backlight: Adjustable white backlight
Core Material: PC keycap + rubber base + stainless steel back plate + FPC circuit
Core Protection: IP67 front panel sealing
Core Standard: MIL-STD-810H environmental standard, CE/FCC/RoHS
