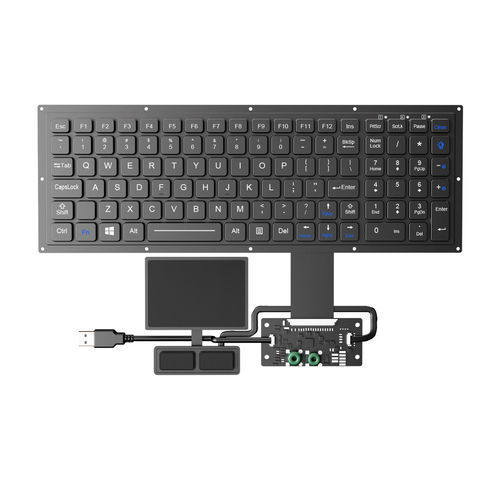

Panel-mount keyboard K-TEK-M340KP-FN-BL-FC-KC-ANA-151B+TP85+2K

carbon contact102-keywith touchpad

Overview

• Category: Ultra thin keyboard
• Key number: 102 keys
• Key travel: 1.50mm ±0.10mm
• Interface: USB
• Key switch: Carbon contact + FPC carbon-on-gold key switch technology
• Protection level: IP67 (front panel)

Mechanical Data
Key: 102 keys
Key technology: Carbon contact + FPC carbon-on-gold key switch technology
Key travel: 1.50mm ±0.10mm
Switch life: more than 5 million operations
Actuation Force: 1.2N ±0.2N

Electrical Data
Supply Voltage: DC +5V ±5%
Current Rating: ≤30mA when backlight is off, ≤300mA with backlight on
MIL-STD-461G (EMC/EMI/EMS/ESD) tests listed

Environmental Adaptability
Operating temperature: -40℃ to +75℃
Storage temperature: -50℃ to +85℃
Humidity test: 30℃–60℃; 95% RH; 24h cycle × 10 cycles (240h total)
Atmospheric pressure: 57 kPa – 106 kPa
Vibration test: 0–2000 Hz, 1 mm displacement, 70 m/s² acceleration
Shock test: pulse waveform, peak acceleration 40 g, pulse duration 11 ms, triaxial impacts
Temperature shock: -55℃ to +75℃ (test cycles as specified)
Fungus test: specified strains, 28 days (672 hours)
Salt spray: NaCl solution procedures and cycles specified
Rain test: rainfall and blowing rain with wind ≥18 m/s, duration 3 h
Dust test: dust-blowing procedures and specified dust content and cycles
Transport package drop test: sample limits, drop height 122 cm, 26 drops total

Reliability
RoHS compliant; CE and FCC certified
Meets MIL-STD-461G and MIL-STD-810H test items for broad environmental qualification
Protection level: IP67 (front panel)
Lifespan: >5 years
MTBF: >20000 h
MTTR: <30 min

Application
Intended for vehicle, aerospace, naval/maritime, radar consoles, display consoles, rugged portable laptops, UAV ground stations and other demanding environments.

Specifications

• Model: K-TEK-M340KP-FN-BL-FC-KC-ANA-151B+TP85+2K
• Keys: 102
• Key travel: 1.50mm ±0.10mm
• Actuation force: 1.2N ±0.2N
• Switch life: >5 million operations
• Interface: USB
• Key switch technology: Carbon contact + FPC carbon-on-gold
• Protection: IP67 (front panel)
• Operating temperature range: -40℃ to +75℃
• Storage temperature range: -50℃ to +85℃
• Compliance: RoHS, CE, FCC; meets MIL-STD-461G and MIL-STD-810H test items
• MTBF: >20000 hours
• Lifespan: >5 years
